Fiber Duct
High quality products based on
high quality material and service.
| Ordering Code | Part Image | Dimension | Material | View | |
| MAIN DUCT |
DW-0305MD |  |
30X50 Main Duct 30/50mm×30/50mm×2,000mm |
PC&ABS (Halogen Free) |
|
| DW-05MD |  |
50 Main Duct 50mm×50mm×2,000mm |
PC&ABS (Halogen Free) |
|
|

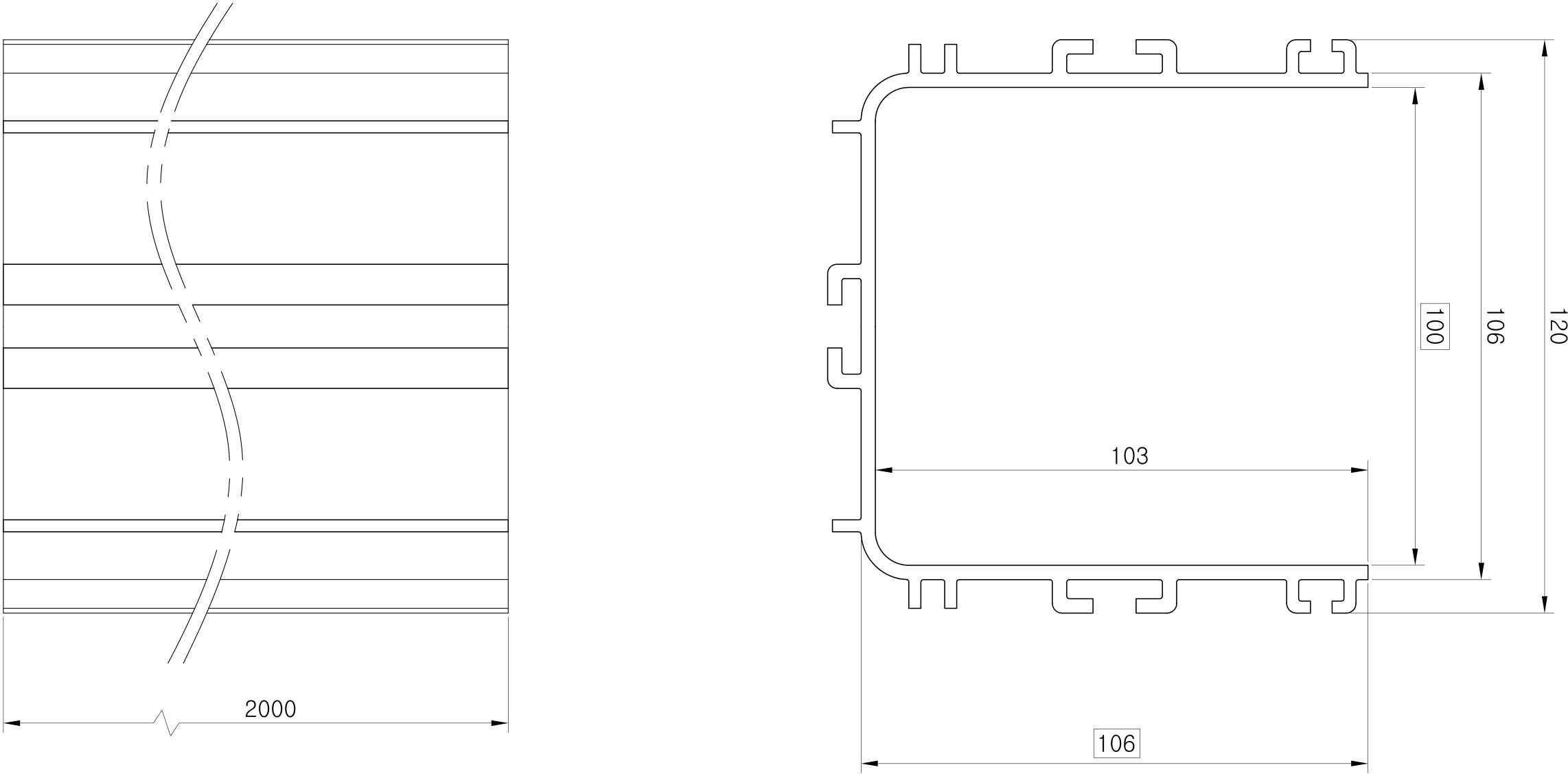

| DW-10MD |  |
100 Main Duct 100mm×100mm×2,000mm |
PC&ABS (Halogen Free) ABS |
|
|

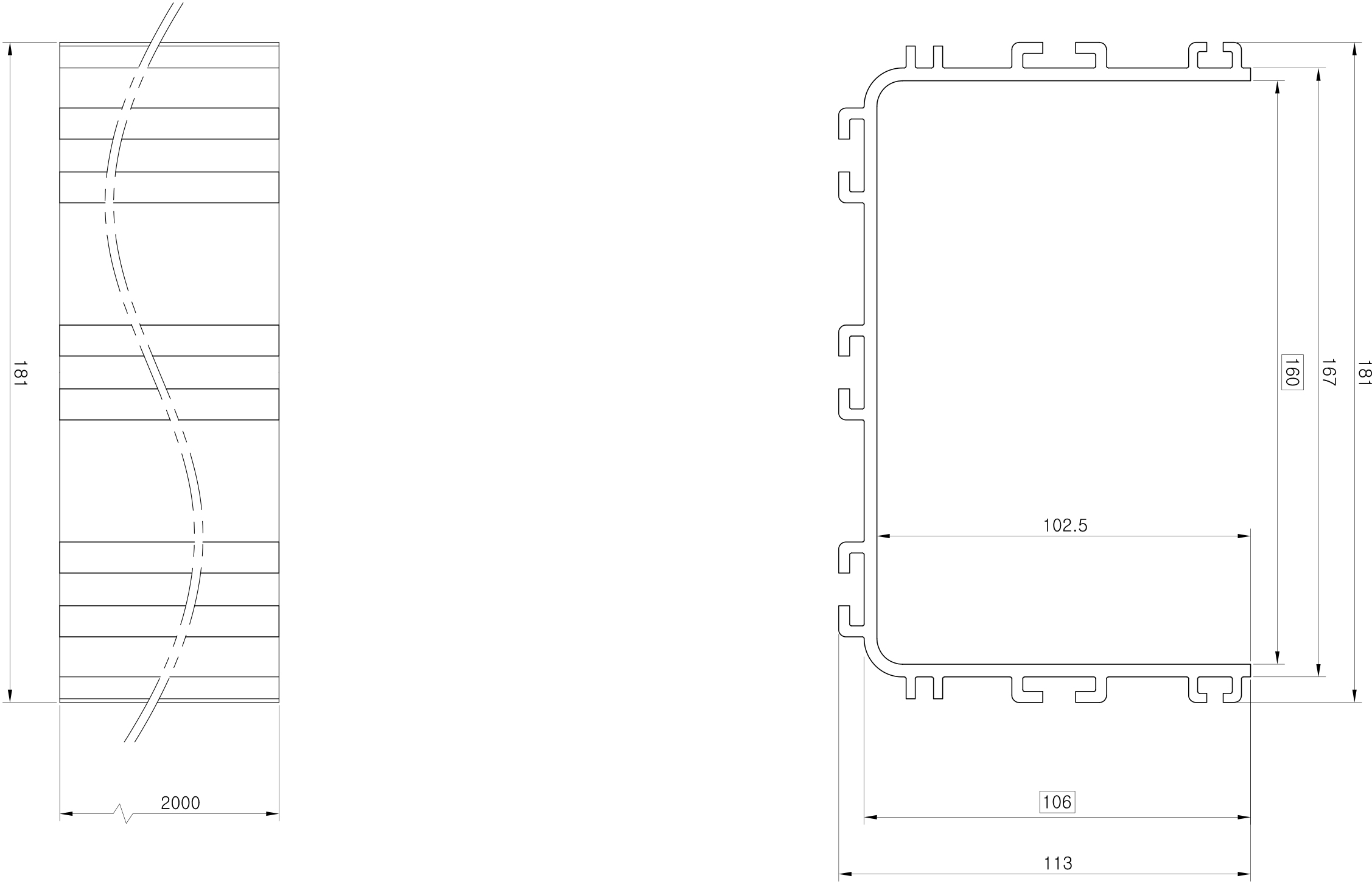

| DW-16MD |  |
160 Main Duct 160mm×100mm×2,000mm |
PC&ABS (Halogen Free) |
|
|
| DW-22MD |  |
220 Main Duct 220mm×100mm×2,000mm |
PC&ABS (Halogen Free) |
|
|

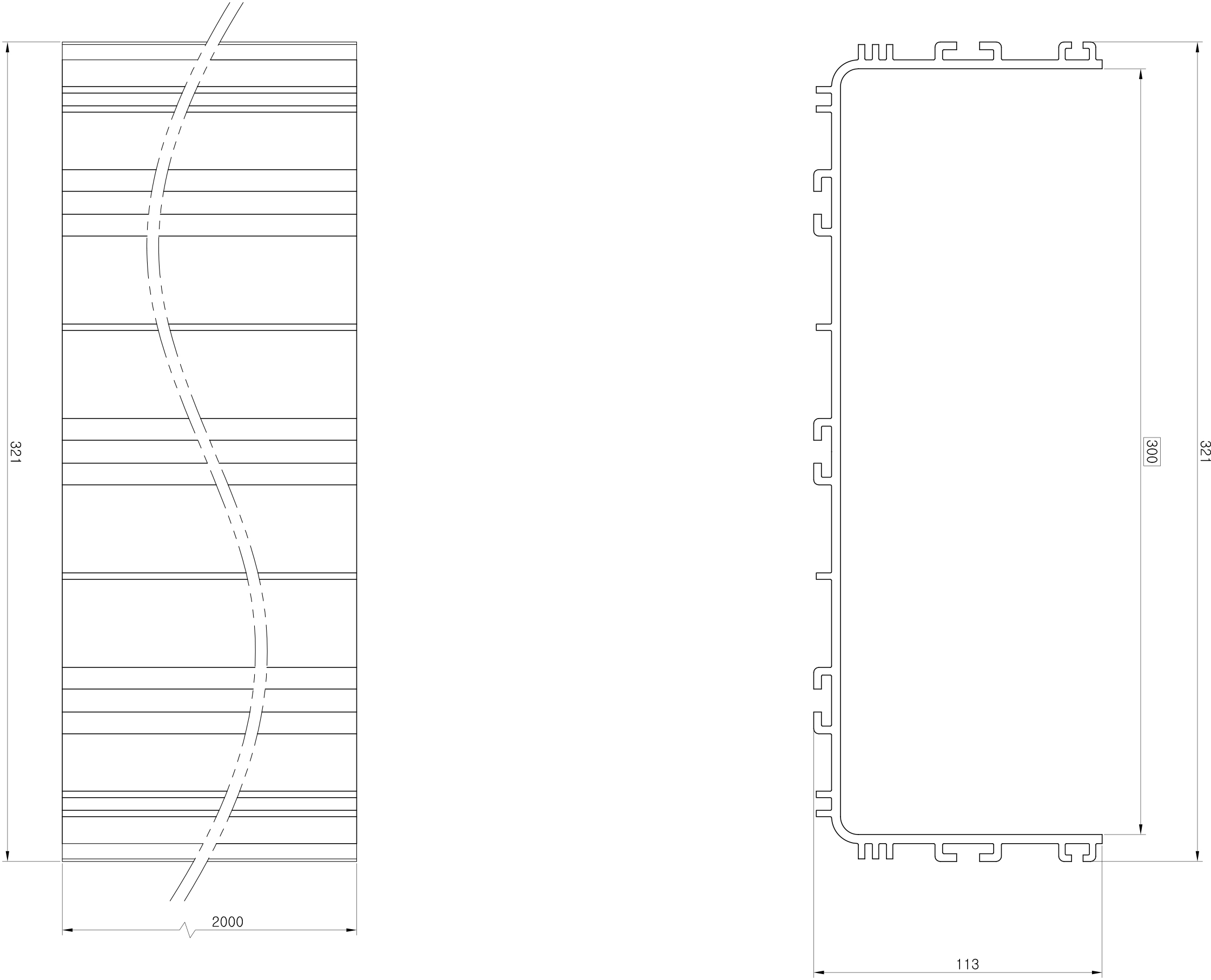

| DW-30MD |  |
300 Main Duct 300mm×100mm×2,000mm |
PC&ABS (Halogen Free) |
|
|
| MAIN DUCT COVER |
DW-0305MDC |  |
30X50 Main Duct Cover 30/50mm×30/50mm×2,000mm |
PC&ABS (Halogen Free) |
|
| DW-05MDC |  |
50 Main Duct Cover 50mm×50mm×2,000mm |
PC&ABS (Halogen Free) |
|
|

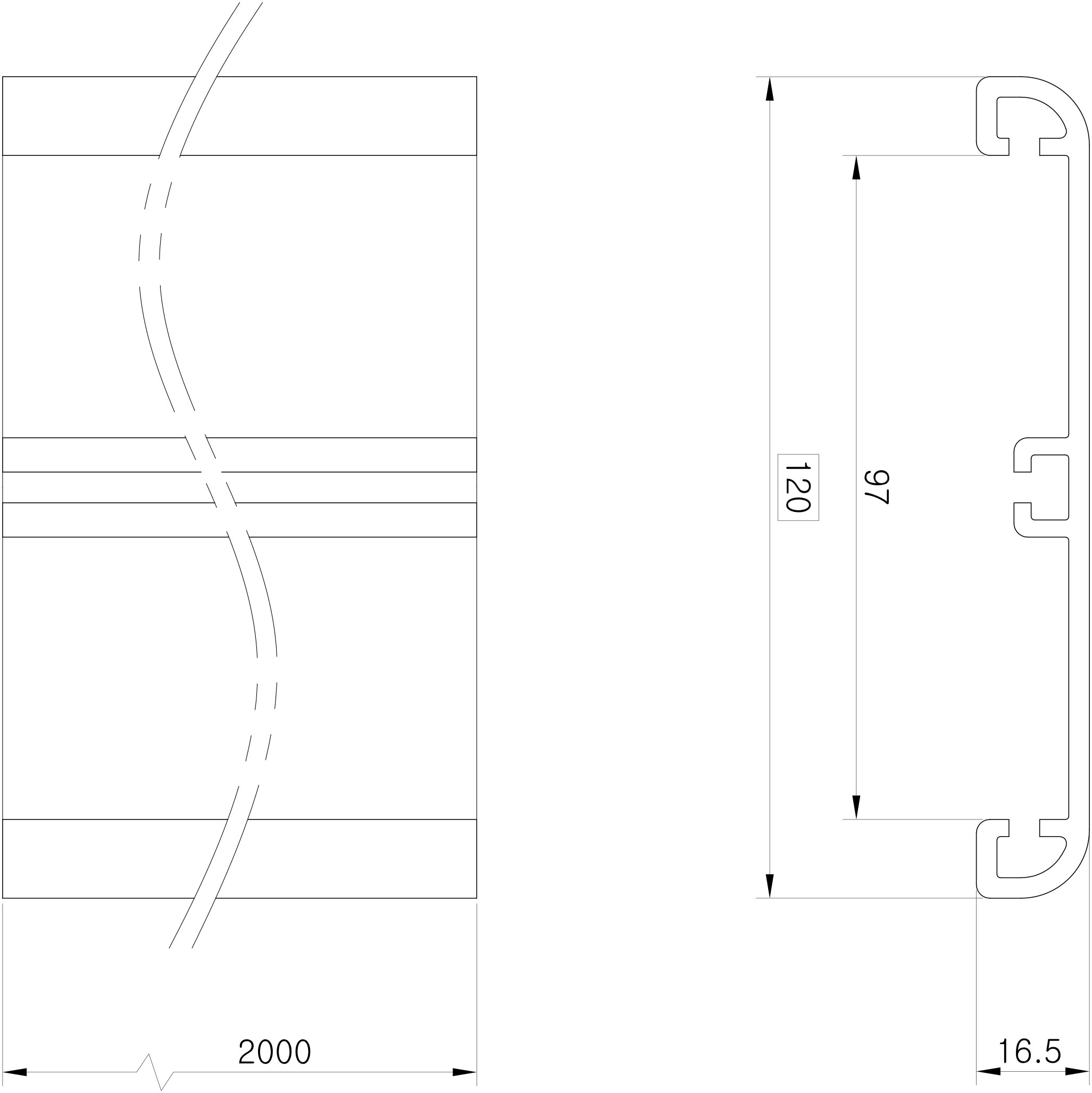

| DW-10MDC |  |
100 Main Duct Cover 100mm×100mm×2,000mm |
PC&ABS (Halogen Free) ABS |
|
|
| DW-16MDC |  |
160 Main Duct Cover 160mm×100mm×2,000mm |
PC&ABS (Halogen Free) |
|
|
| COVER | DW-22MDC |  |
220 Main Duct Cover 220mm×100mm×2,000mm |
PC&ABS (Halogen Free) |
|
| DW-30MDC |  |
300 Main Duct Cover 300mm×100mm×2,000mm |
PC&ABS (Halogen Free) |
|
|

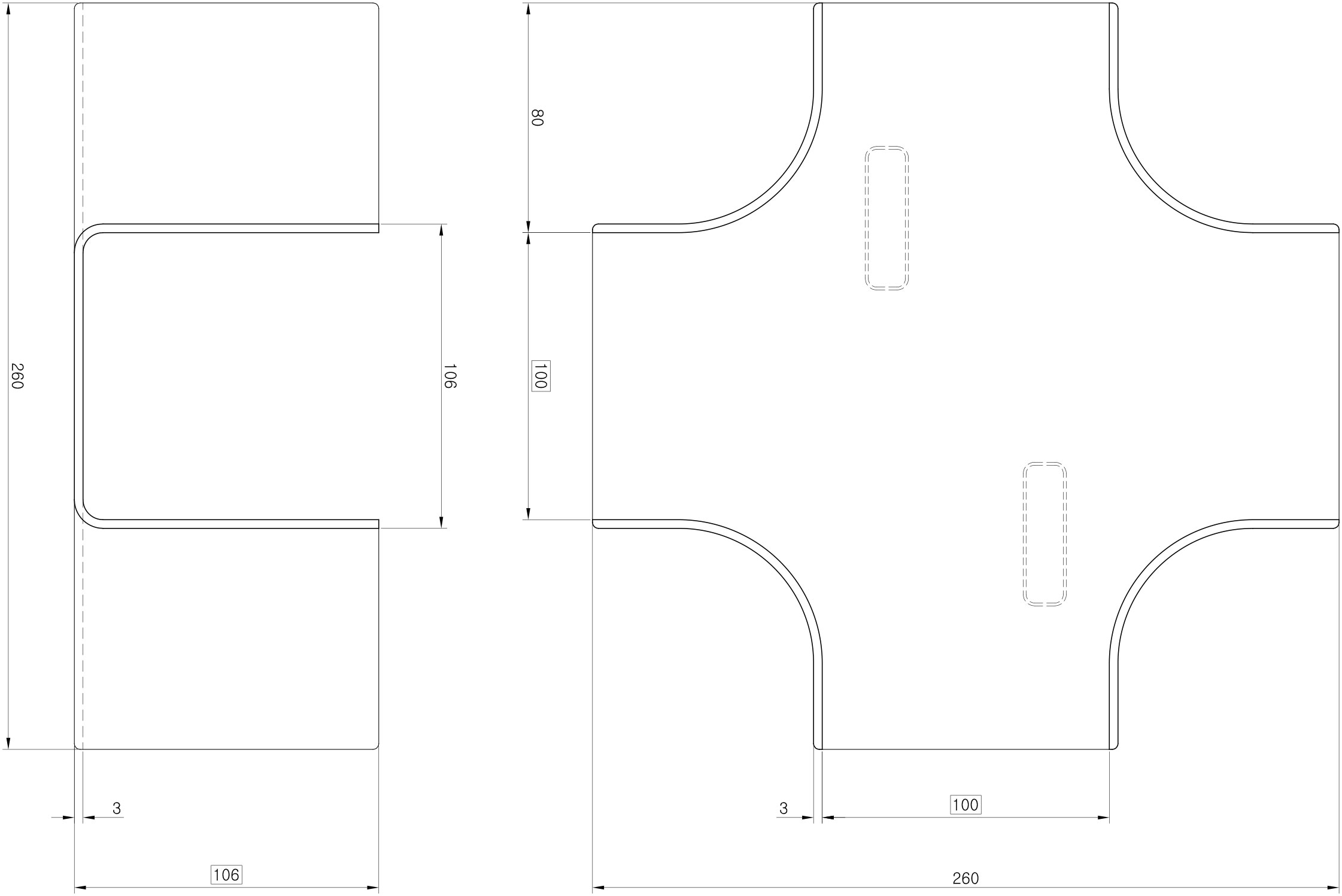

| CROSSES | DW-10CA |  |
100 H-Crosses 100mm×100mm Length : 260mm |
PC&ABS (Halogen Free) |
|

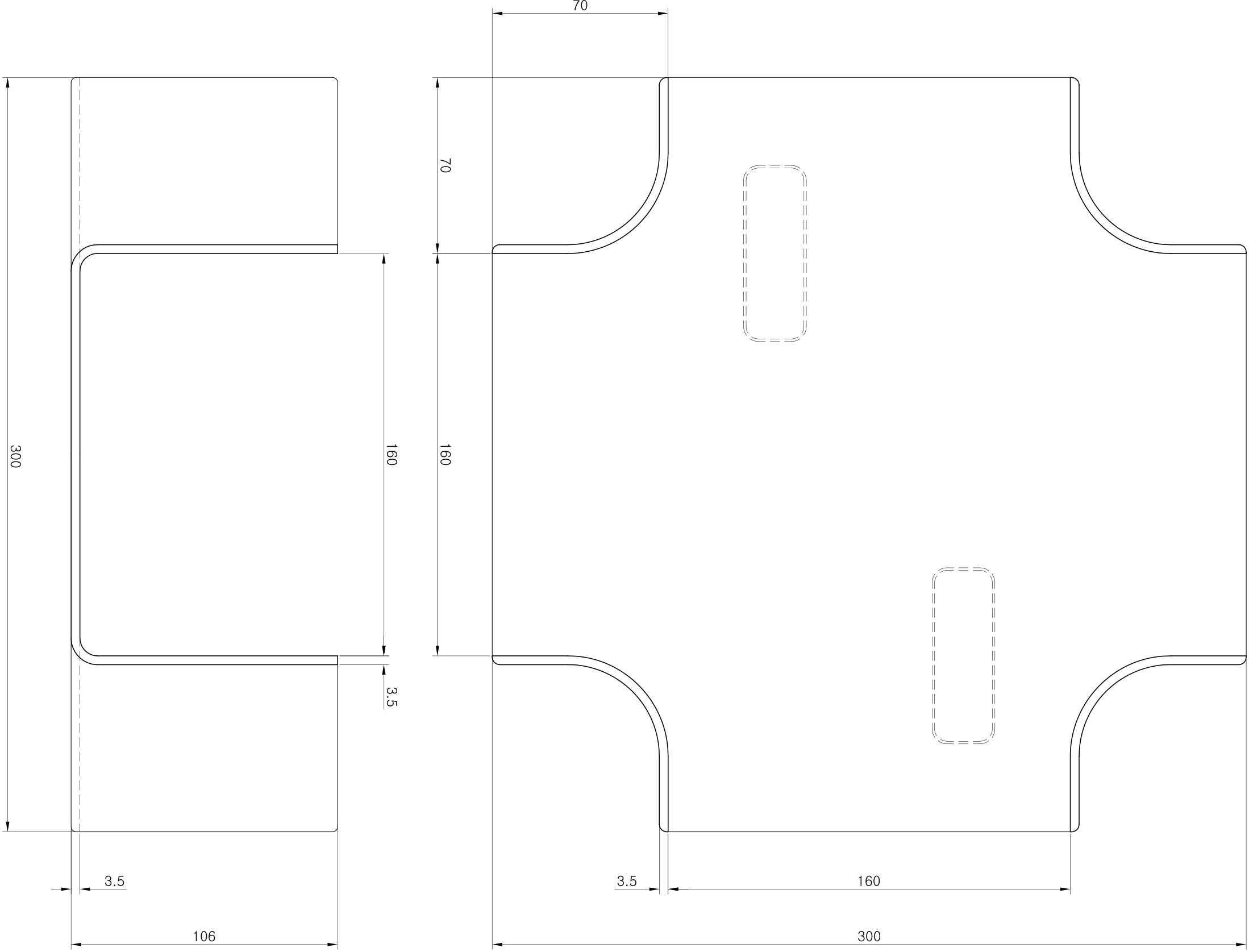

| DW-16CA |  |
160 H-Crosses 160mm×100mm Length : 300mm |
PC&ABS (Halogen Free) |
|
|
| DW-22CA |  |
220 H-Crosses 220mm×100mm Length : 360mm |
PC&ABS (Halogen Free) |
|
|
| DW-30CA |  |
300 H-Crosses 300mm×100mm Length : 440mm |
PC&ABS (Halogen Free) |
|
|
| CROSSES COVER |
DW-10CAC |  |
100 H-Crosses Cover 100mm×100mm Length : 265mm |
PC&ABS (Halogen Free) |
|
| DW-16CAC |  |
160 H-Crosses Cover 160mm×100mm Length : 307mm |
PC&ABS (Halogen Free) |
|
|

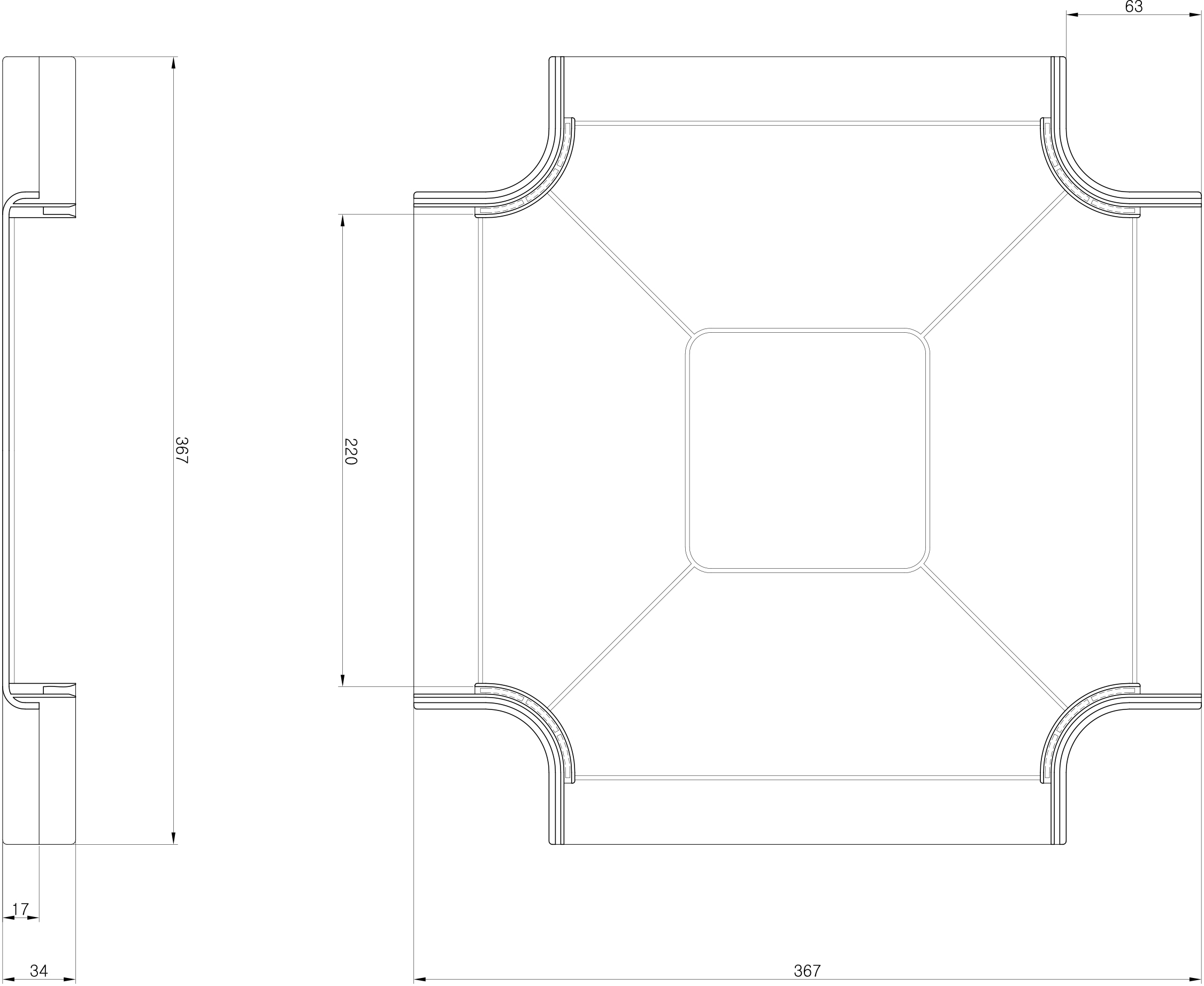

| DW-22CAC |  |
220 H-Crosses Cover 220mm×100mm Length : 367mm |
PC&ABS (Halogen Free) |
|
|
| DW-30CAC |  |
300 H-Crosses Cover 300mm×100mm Length : 446.5mm |
PC&ABS (Halogen Free) |
|
|
| TEES | DW-0305TA |  |
30X50 H-Tees 30/50mm×30/50mm Length : 55.5mm |
PC&ABS (Halogen Free) |
|
| DW-10TA |  |
100 H-Tees 100mm×100mm Length : 183mm |
PC&ABS (Halogen Free) |
|
|
| DW-16TA |  |
160 H-Tees 160mm×100mm Length : 233.5mm |
PC&ABS (Halogen Free) |
|
|

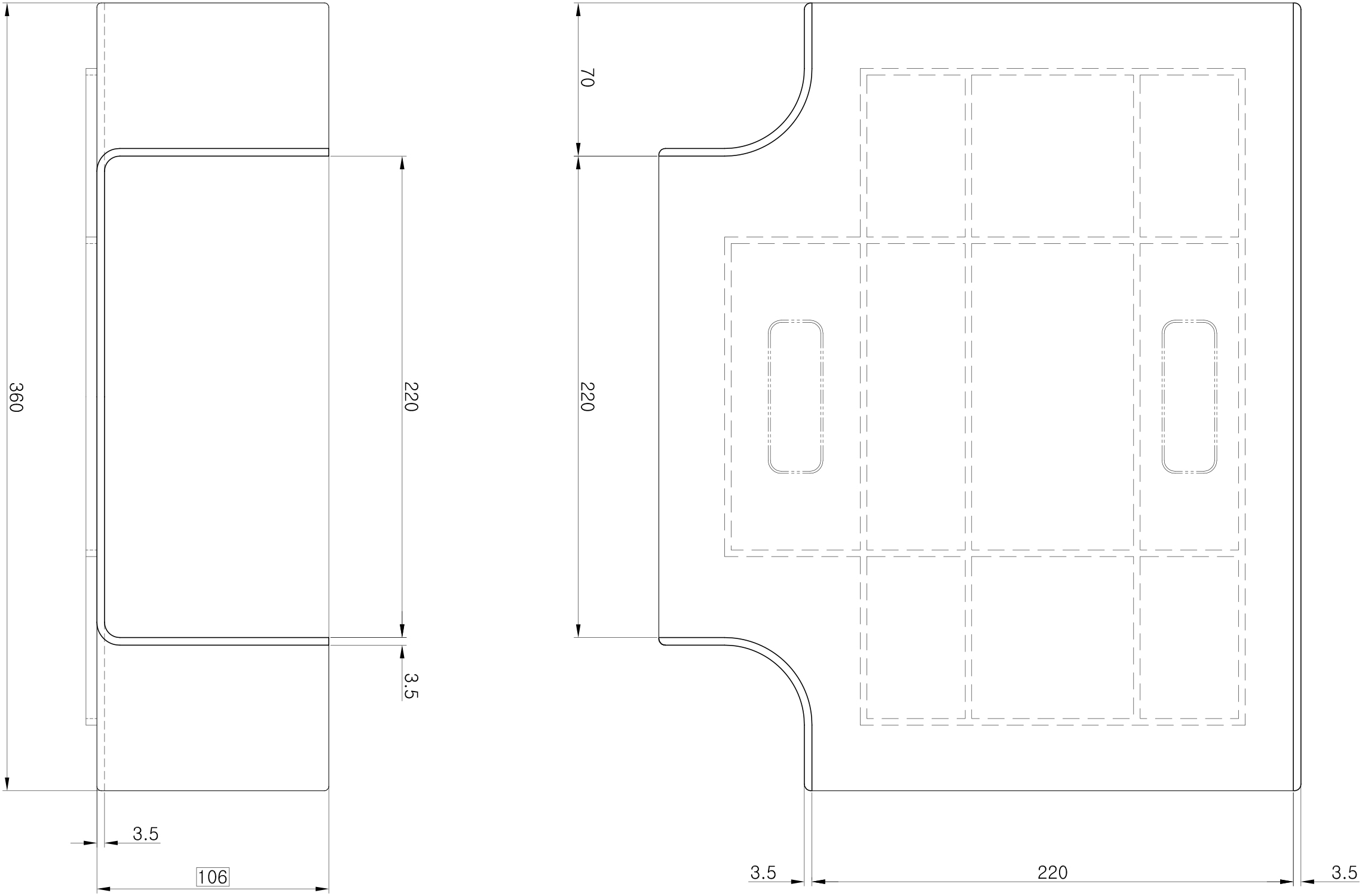

| DW-22TA |  |
220 H-Tees 220mm×100mm Length : 293.5mm |
PC&ABS (Halogen Free) |
|
|
| DW-30TA |  |
300 H-Tees 300mm×100mm Length : 373.5mm |
PC&ABS (Halogen Free) |
|
|
| TEES COVER |
DW-0305TAC |  |
30X50 H-Tees Cover 30/50mm×30/50mm Length : 47.5mm |
PC&ABS (Halogen Free) |
|

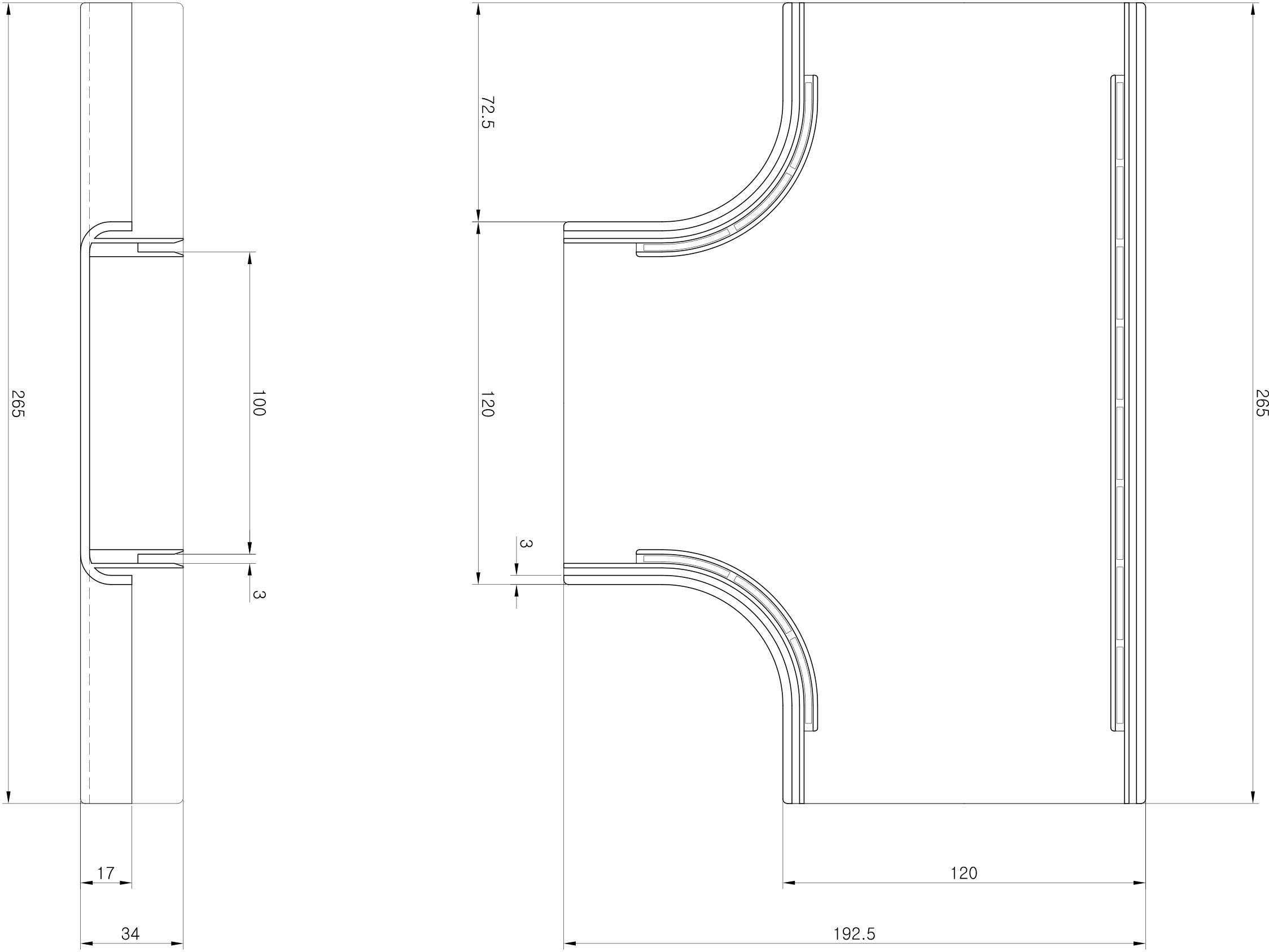

| DW-10TAC |  |
100 H-Tees Cover 100mm×100mm Length : 192.5mm |
PC&ABS (Halogen Free) |
|
|
| DW-16TAC |  |
160 H-Tees Cover 160mm×100mm Length : 244mm |
PC&ABS (Halogen Free) |
|
|

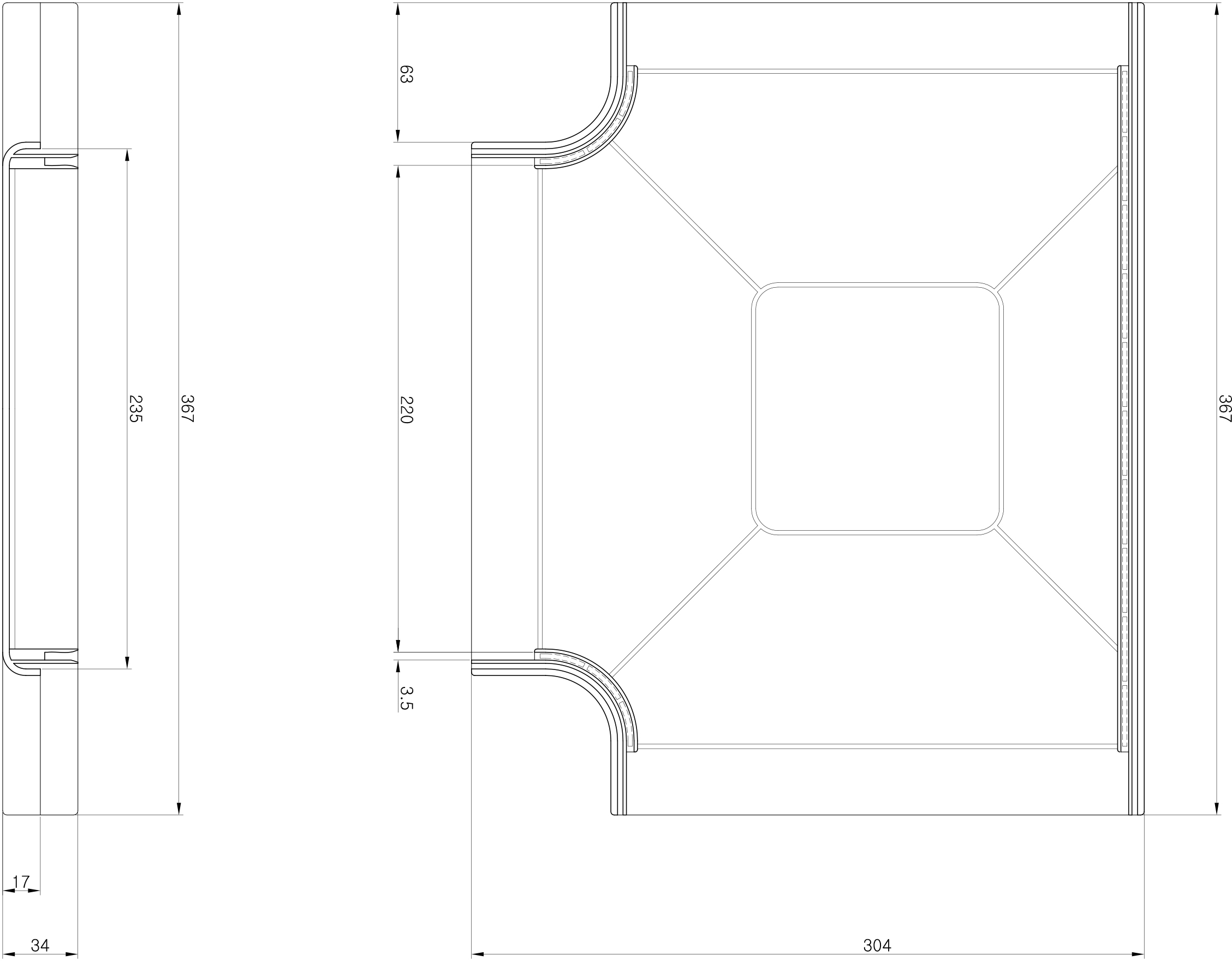

| DW-22TAC |  |
220 H-Tees Cover 220mm×100mm Length : 304mm |
PC&ABS (Halogen Free) |
|
|

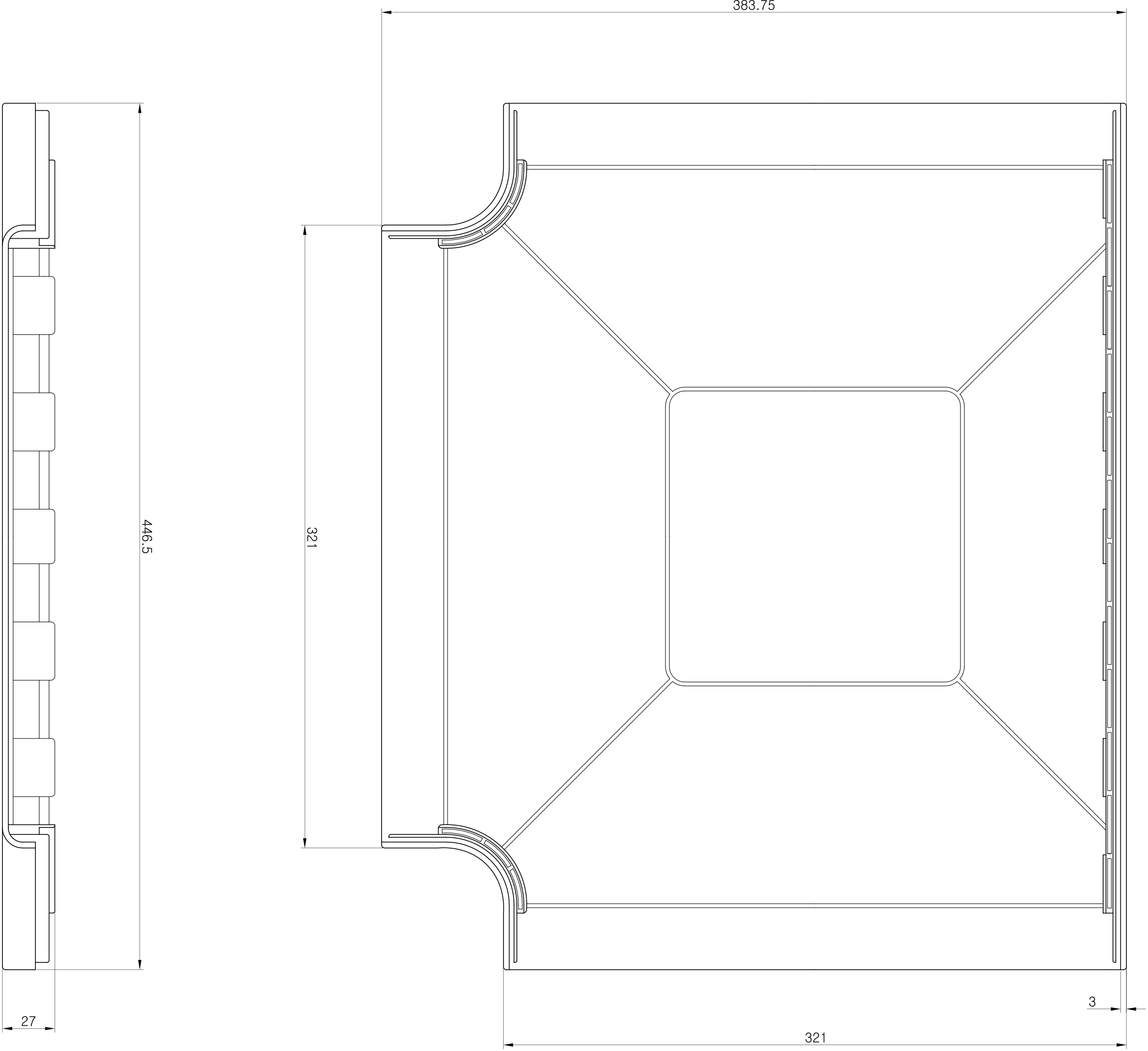

| DW-30TAC |  |
300 H-Tees Cover 300mm×100mm Length : 383.75mm |
PC&ABS (Halogen Free) |
|
|

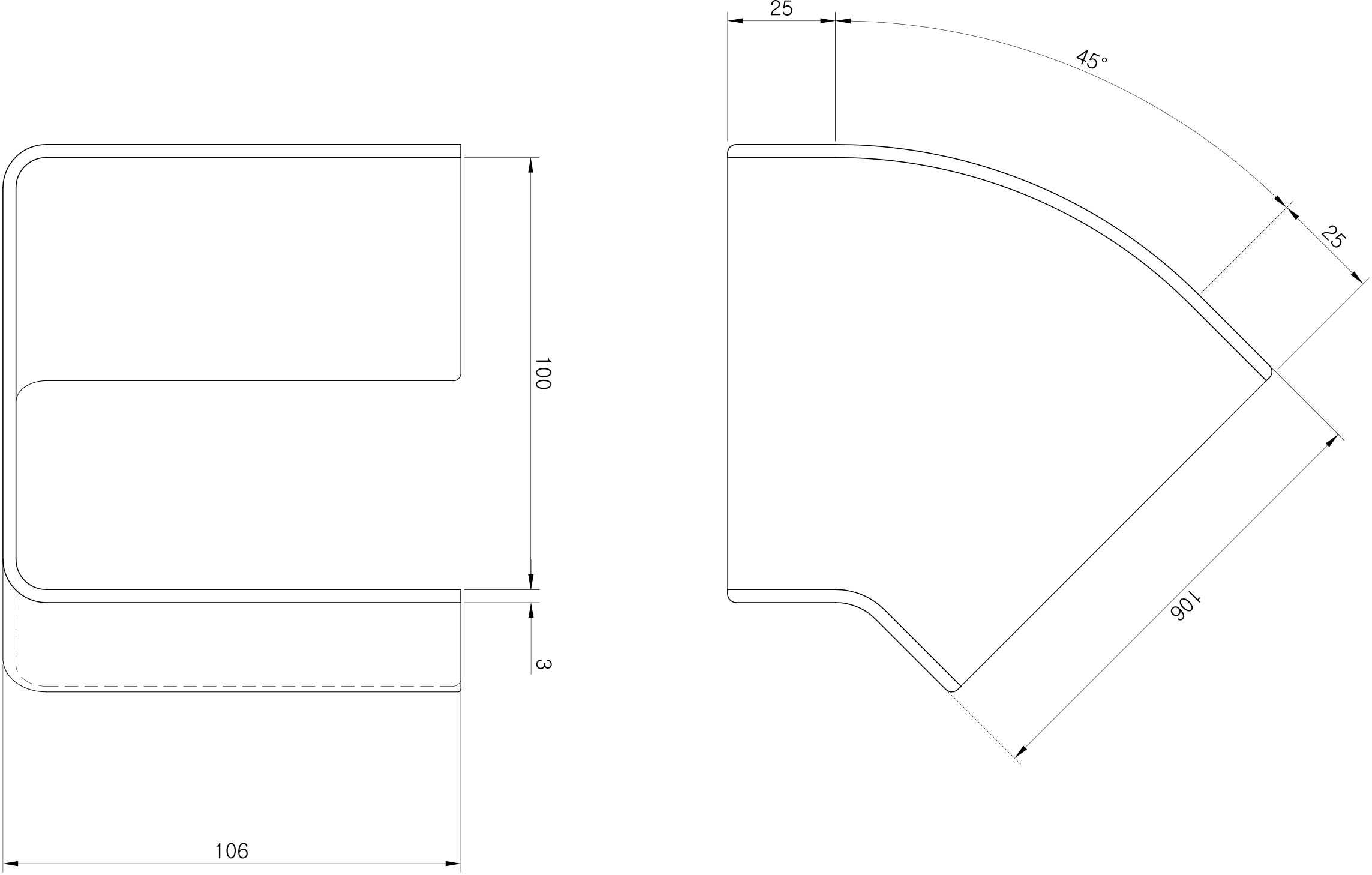

| HORIZONTAL ELBOW |
DW-0305HA |  |
30X50 H-Elbow 90’ 30/50mm×30/50mm Length : 55.5mm |
PC&ABS (Halogen Free) |
|
| DW-10HA |  |
100 H-Elbow 45’ 100mm×100mm Length : 126mm |
PC&ABS (Halogen Free) |
|
|

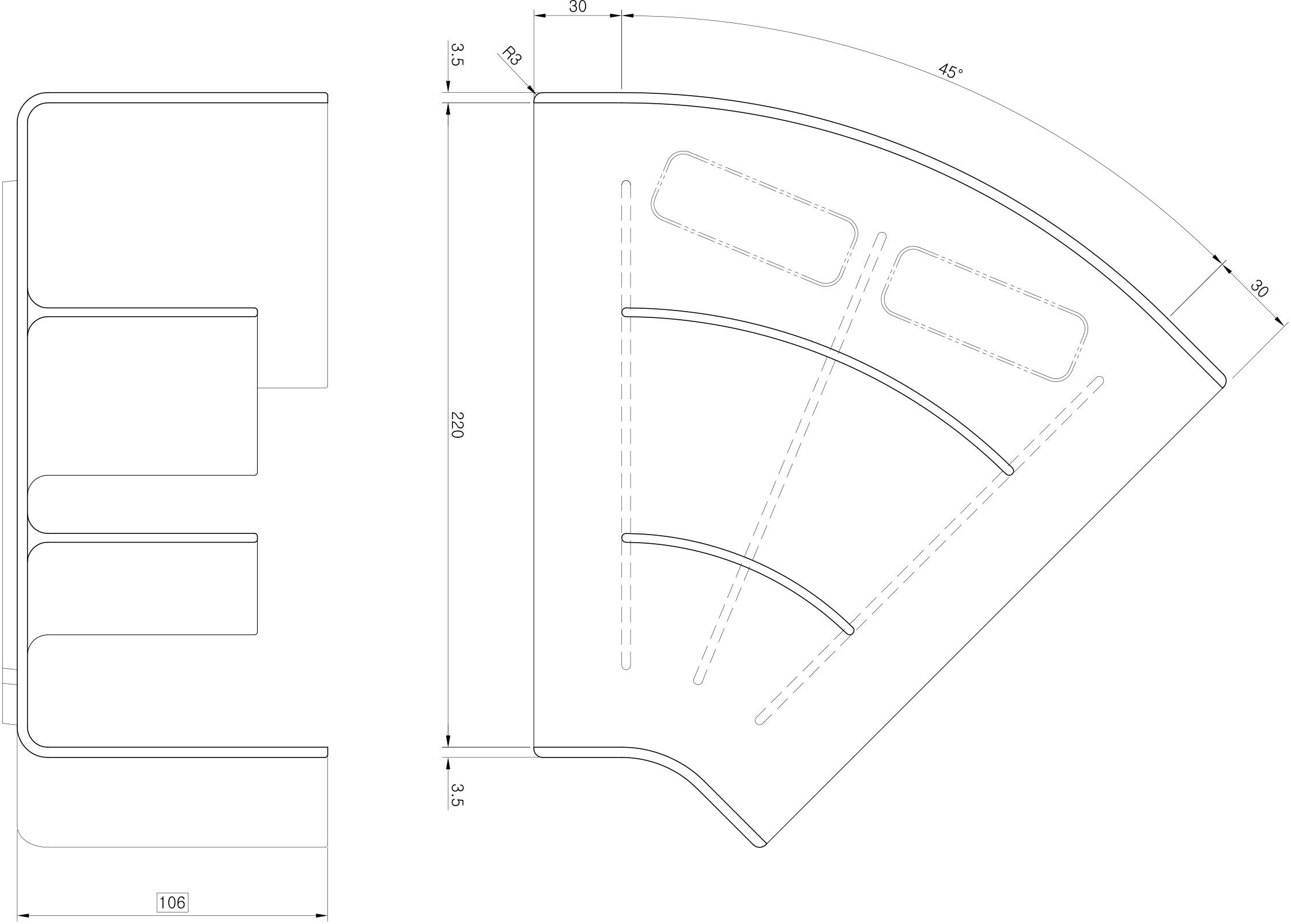

| DW-16HA |  |
160 H-Elbow 45’ 160mm×100mm Length : 193.8mm |
PC&ABS (Halogen Free) |
|
|
| DW-22HA |  |
220 H-Elbow 45’ 220mm×100mm Length : 236.3mm |
PC&ABS (Halogen Free) |
|
|
| DW-30HA |  |
300 H-Elbow 45’ 300mm×100mm Length : 373.5mm |
PC&ABS (Halogen Free) |
|
|
| HORIZONTAL ELBOW COVER |

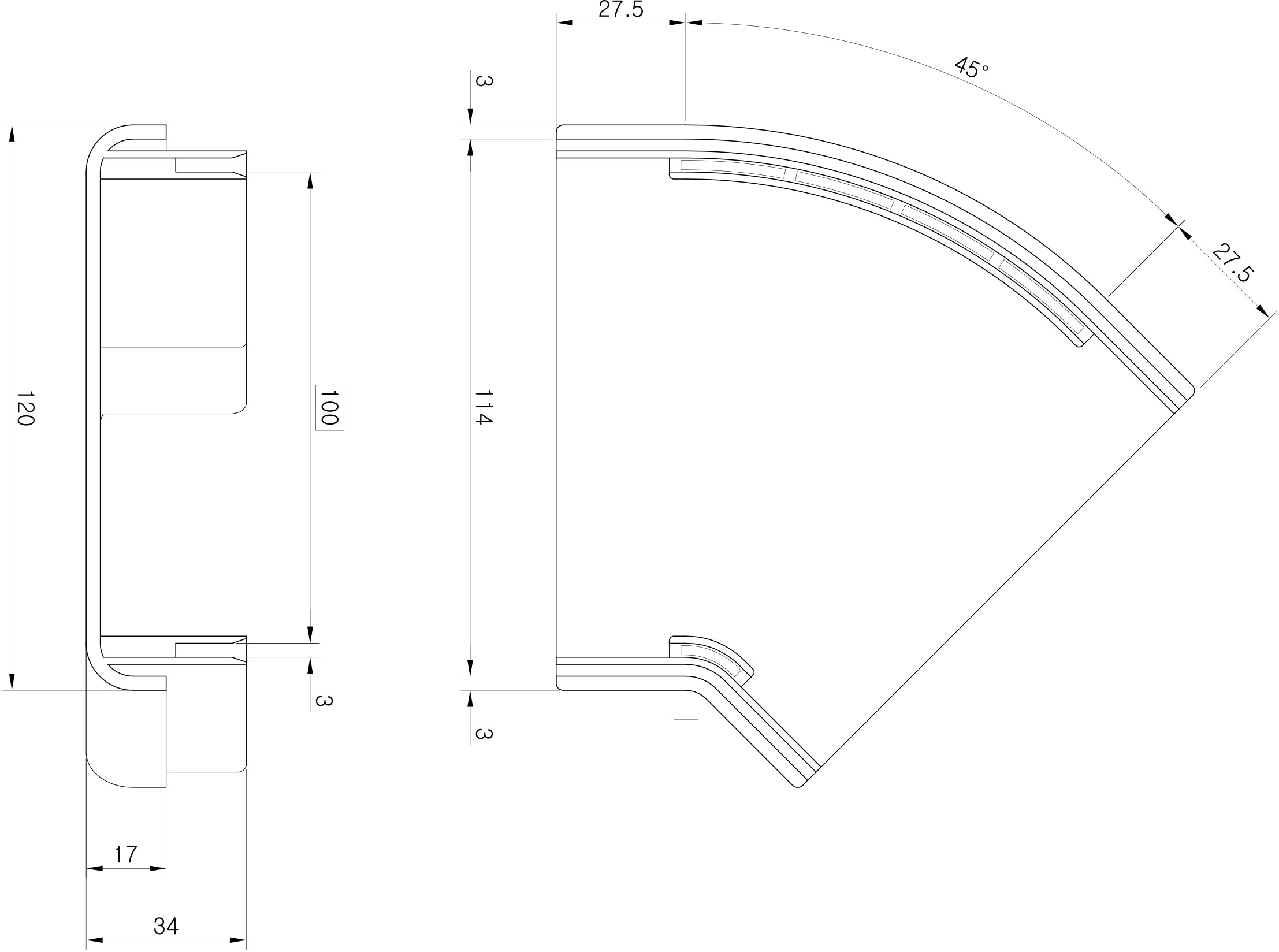

DW-0305HAC |  |
30X50 H-Elbow 90’ Cover 30/50mm×30/50mm Length : 47.5mm |
PC&ABS (Halogen Free) |
|
| DW-10HAC |  |
100 H-Elbow 45’ Cover 100mm×100mm Length : 135.5mm |
PC&ABS (Halogen Free) |
|
|
| DW-16HAC |  |
160 H-Elbow 45’ Cover 160mm×100mm Length : 205.5mm |
PC&ABS (Halogen Free) |
|
|

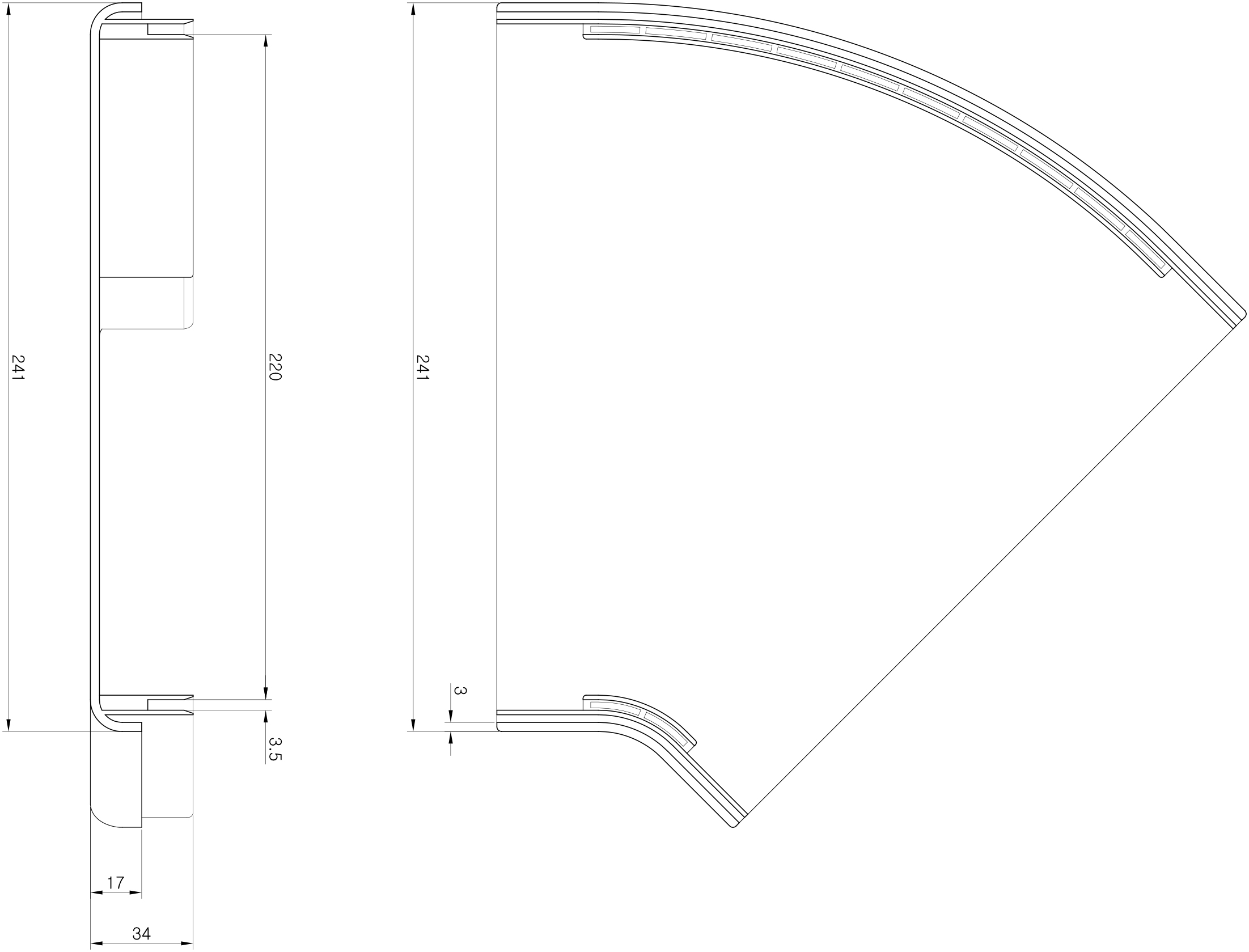

| DW-22HAC |  |
220 H-Elbow 45’ Cover 220mm×100mm Length : 247.8mm |
PC&ABS (Halogen Free) |
|
|

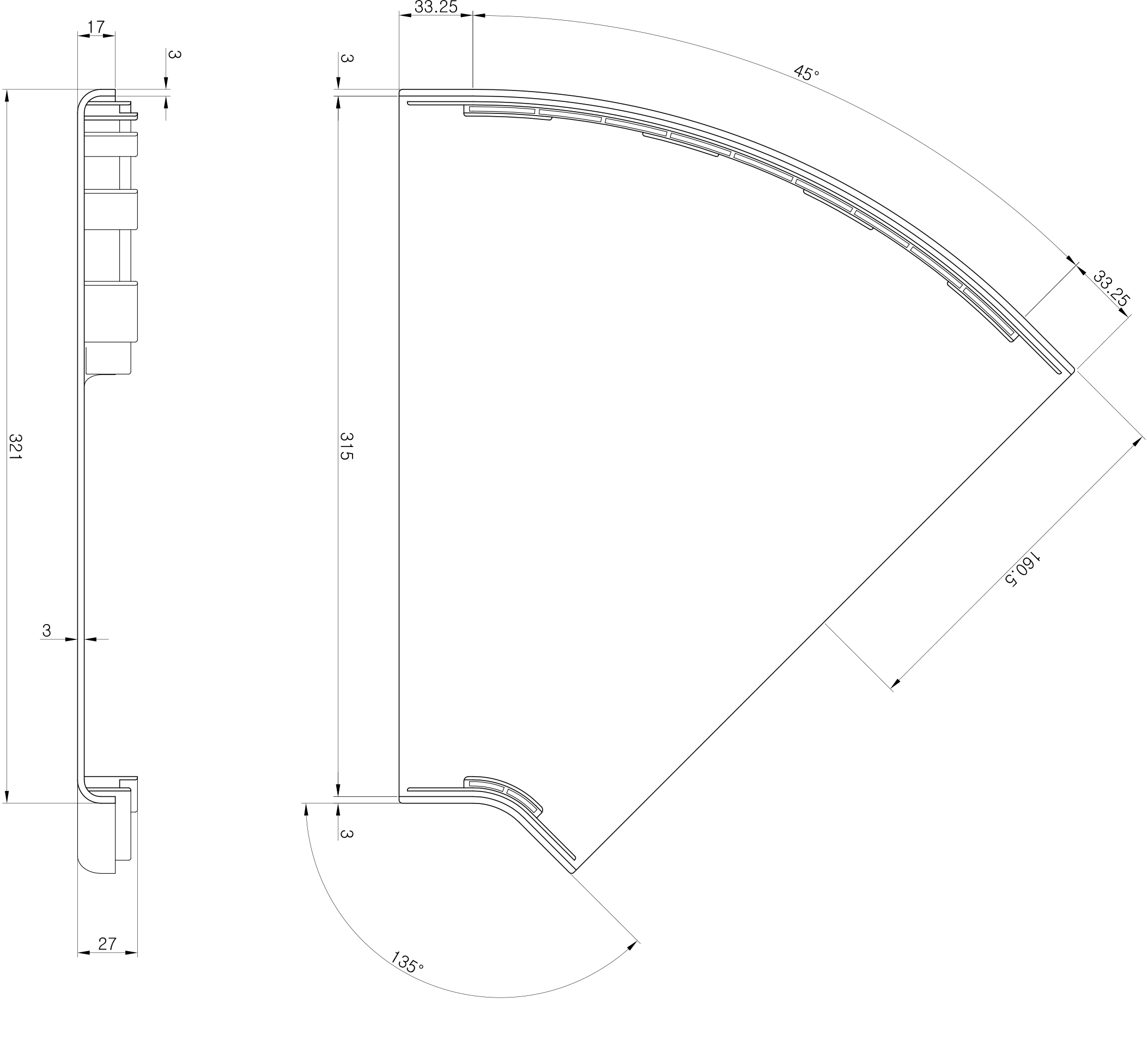

| DW-30HAC |  |
300 H-Elbow 45’ Cover 300mm×100mm Length : 304mm |
PC&ABS (Halogen Free) |
|
|

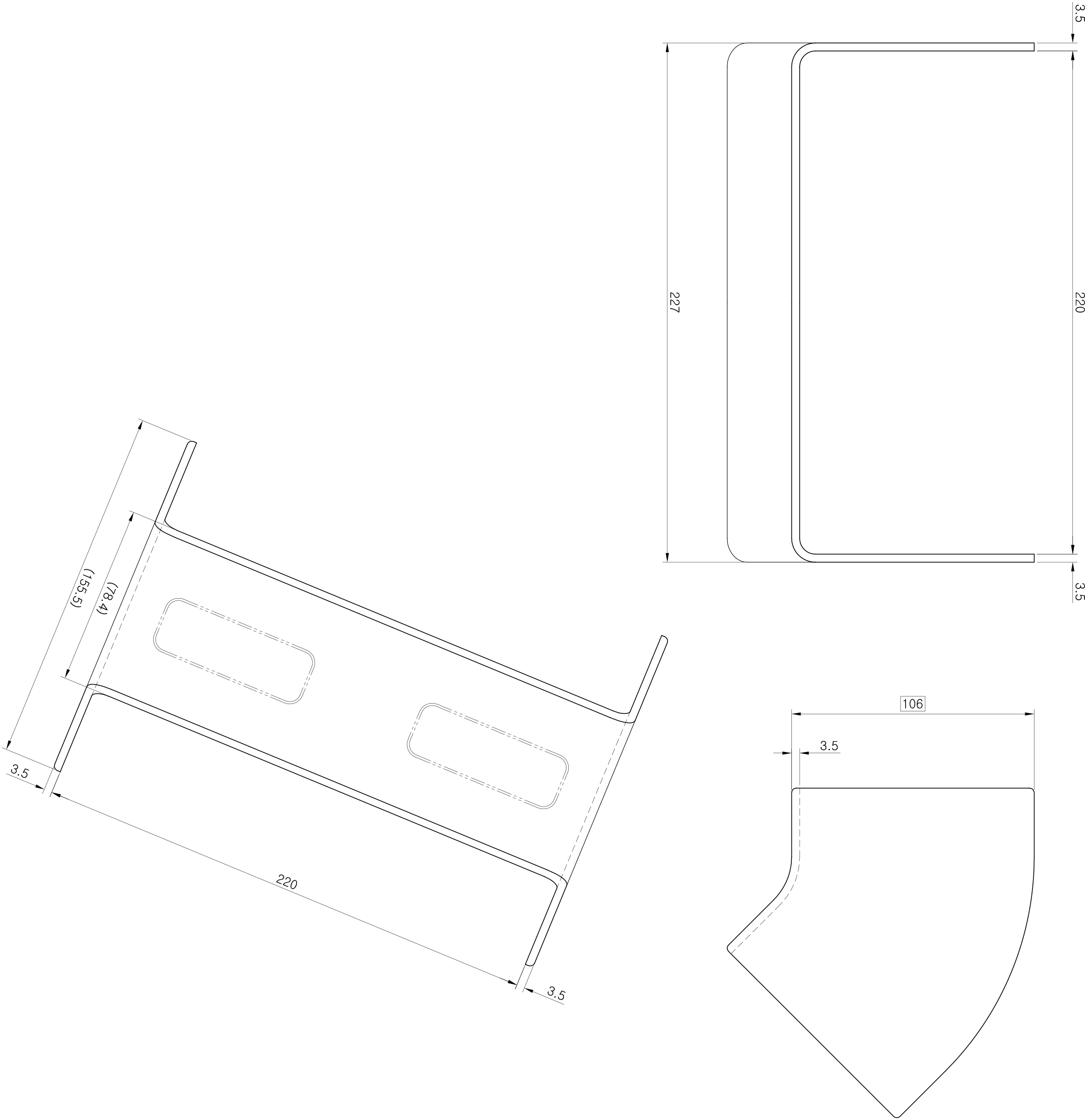

| DOWN ELBOW |

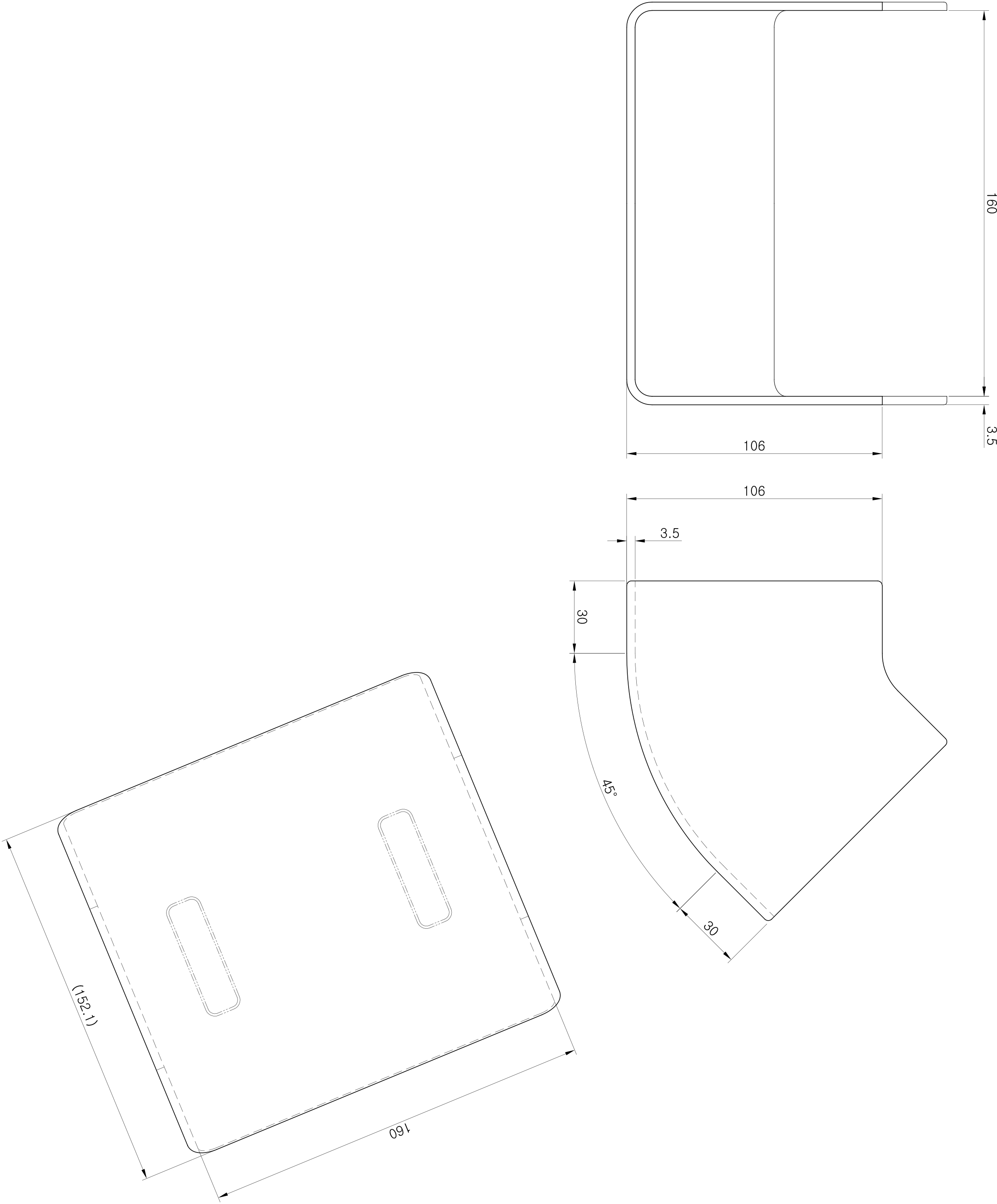

DW-05DA |  |
50 V-Elbow 45’ Down 50mm×50mm Length : 99mm |
PC&ABS (Halogen Free) |
|

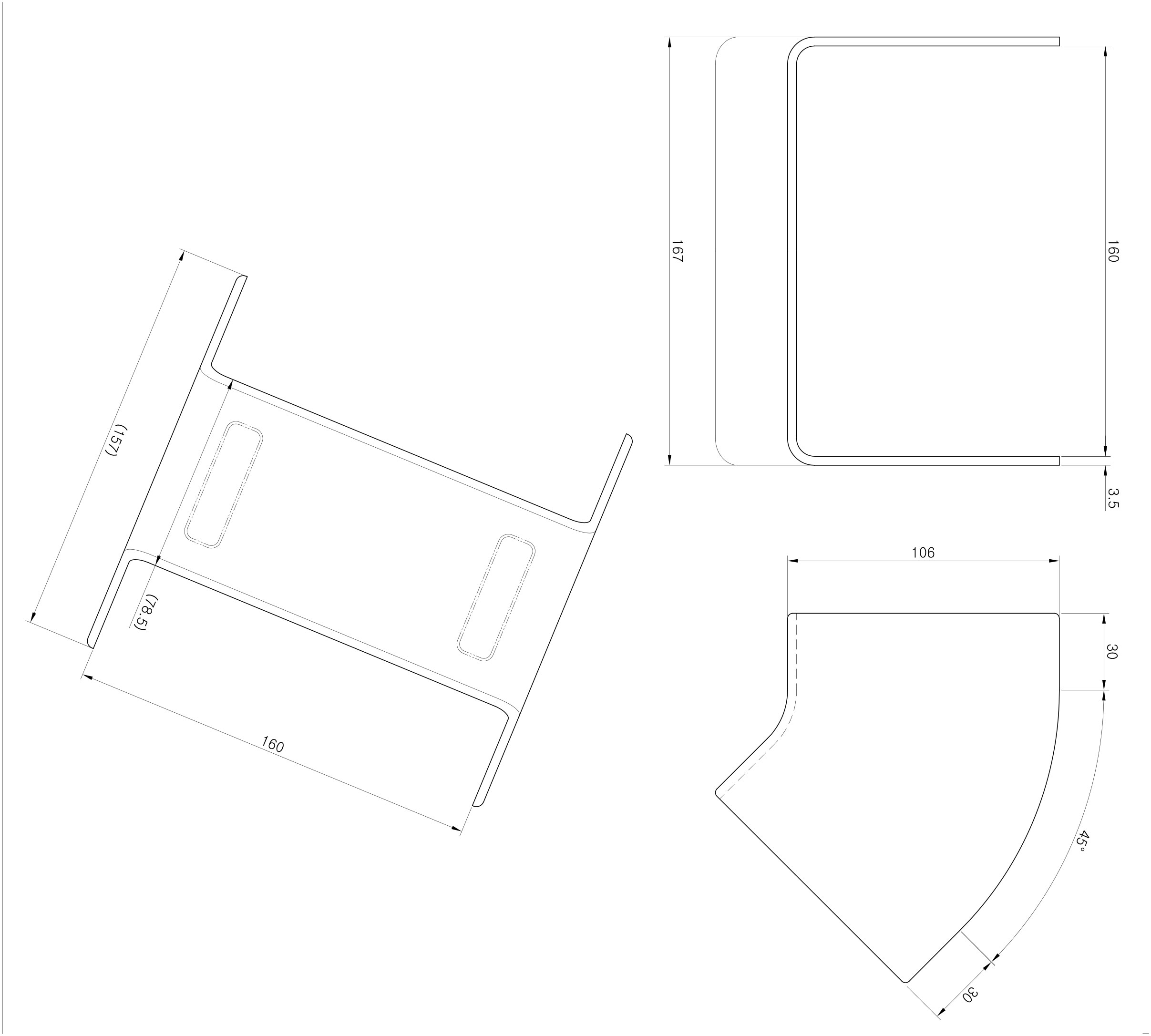

| DW-10DA |  |
100 V-Elbow 45’ Down 100mm×100mm Length : 155.5mm |
PC&ABS (Halogen Free) |
|
|
| DW-16DA |  |
160 V-Elbow 45’ Down 160mm×100mm Length : 155.5mm |
PC&ABS (Halogen Free) |
|
|
| DW-22DA |  |
220 V-Elbow 45’ Down 220mm×100mm Length : 155.5mm |
PC&ABS (Halogen Free) |
|
|

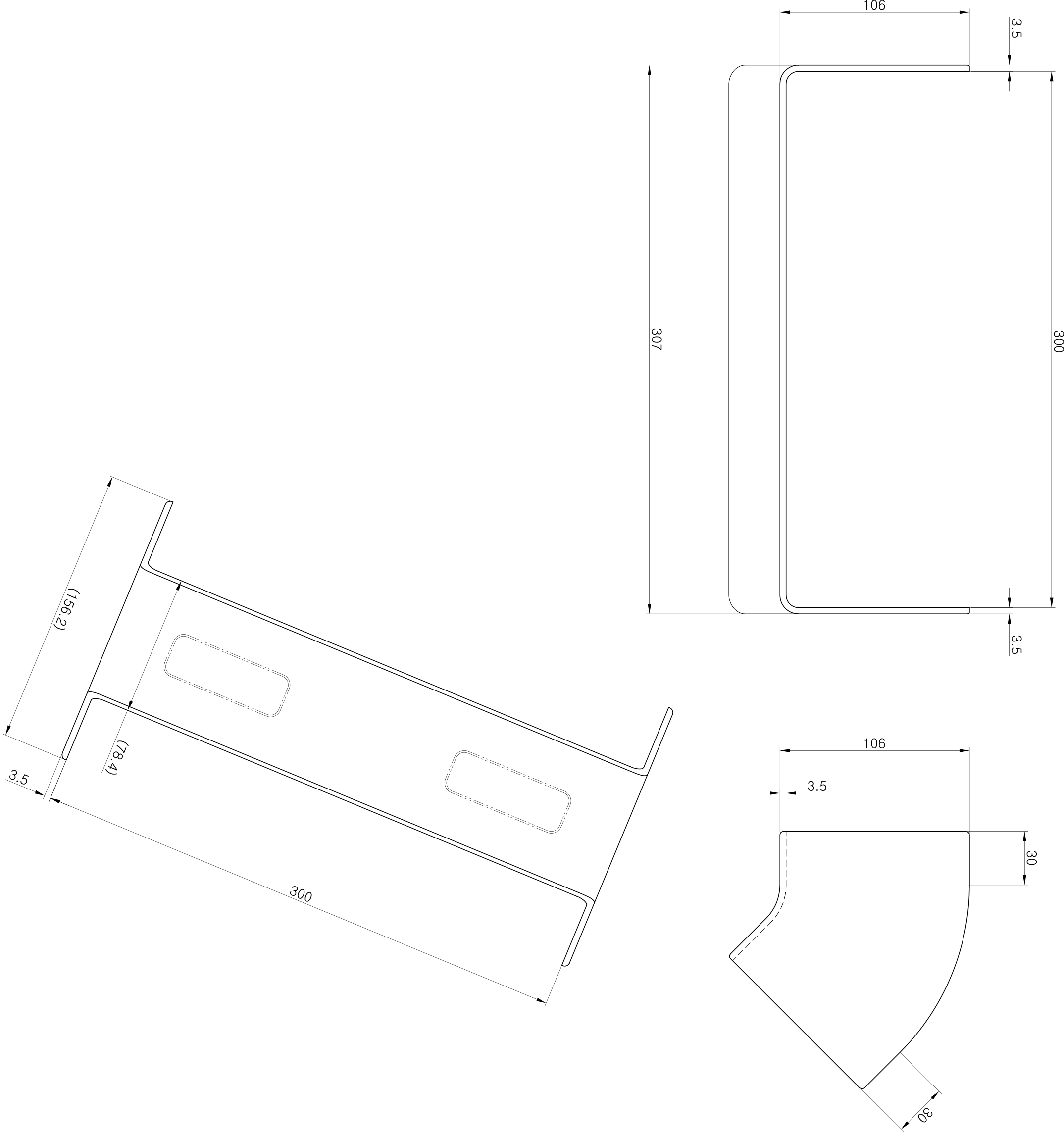

| DW-30DA |  |
300 V-Elbow 45’ Down 300mm×100mm Length : 155.5mm |
PC&ABS (Halogen Free) |
|
|

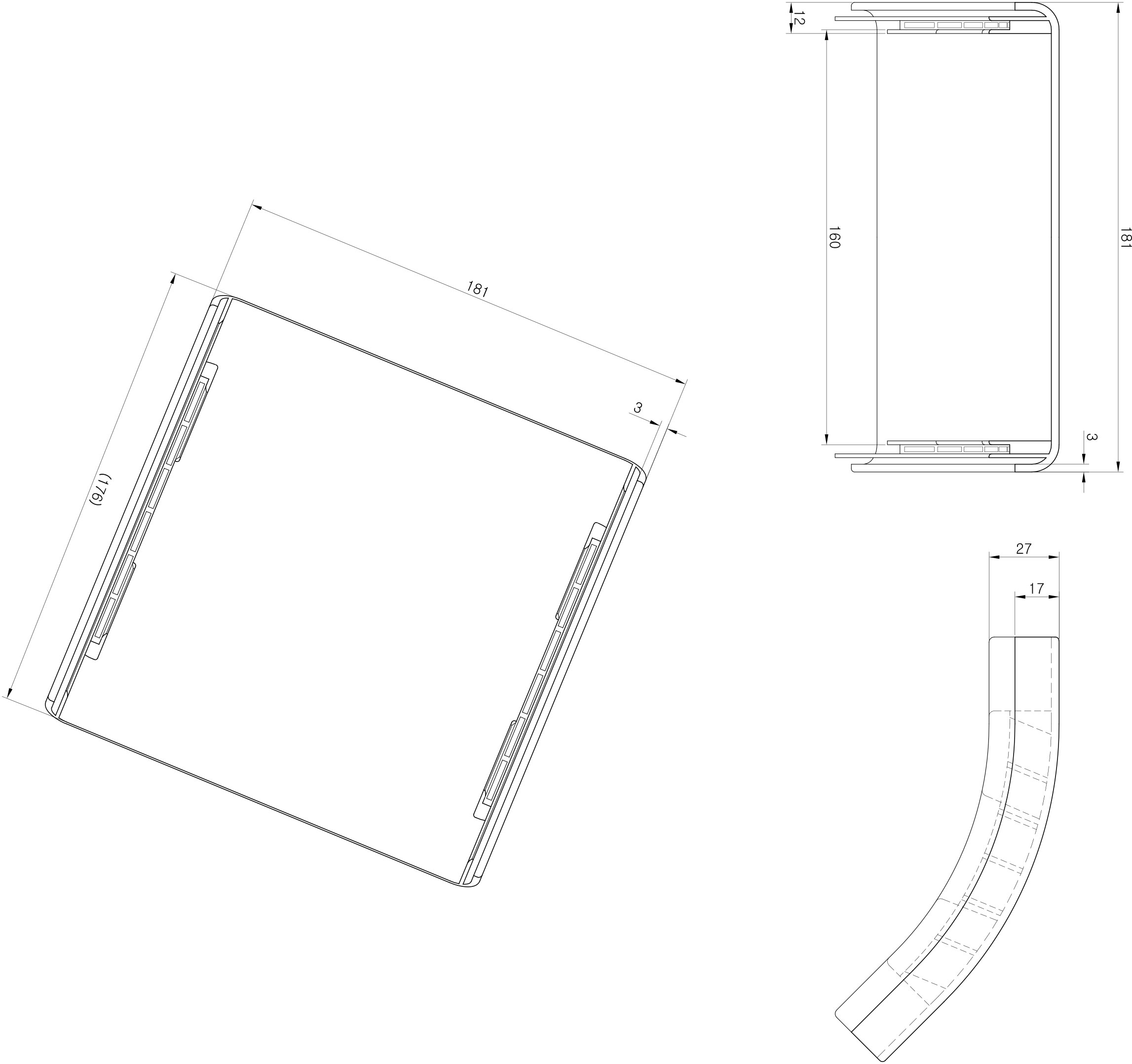

| DOWN ELBOW COVER |
DW-05DAC |  |
50 V-E 45’ Down Cover 50mm×50mm Length : 104.5mm |
PC&ABS (Halogen Free) |
|
| DW-10DAC |  |
100 V-E 45’ Down Cover 100mm×100mm Length : 175.5mm |
PC&ABS (Halogen Free) |
|
|
| DW-16DAC |  |
160 V-E 45’ Down Cover 160mm×100mm Length : 177mm |
PC&ABS (Halogen Free) |
|
|
| DW-22DAC |  |
220 V-E 45’ Down Cover 220mm×100mm Length : 177mm |
PC&ABS (Halogen Free) |
|
|

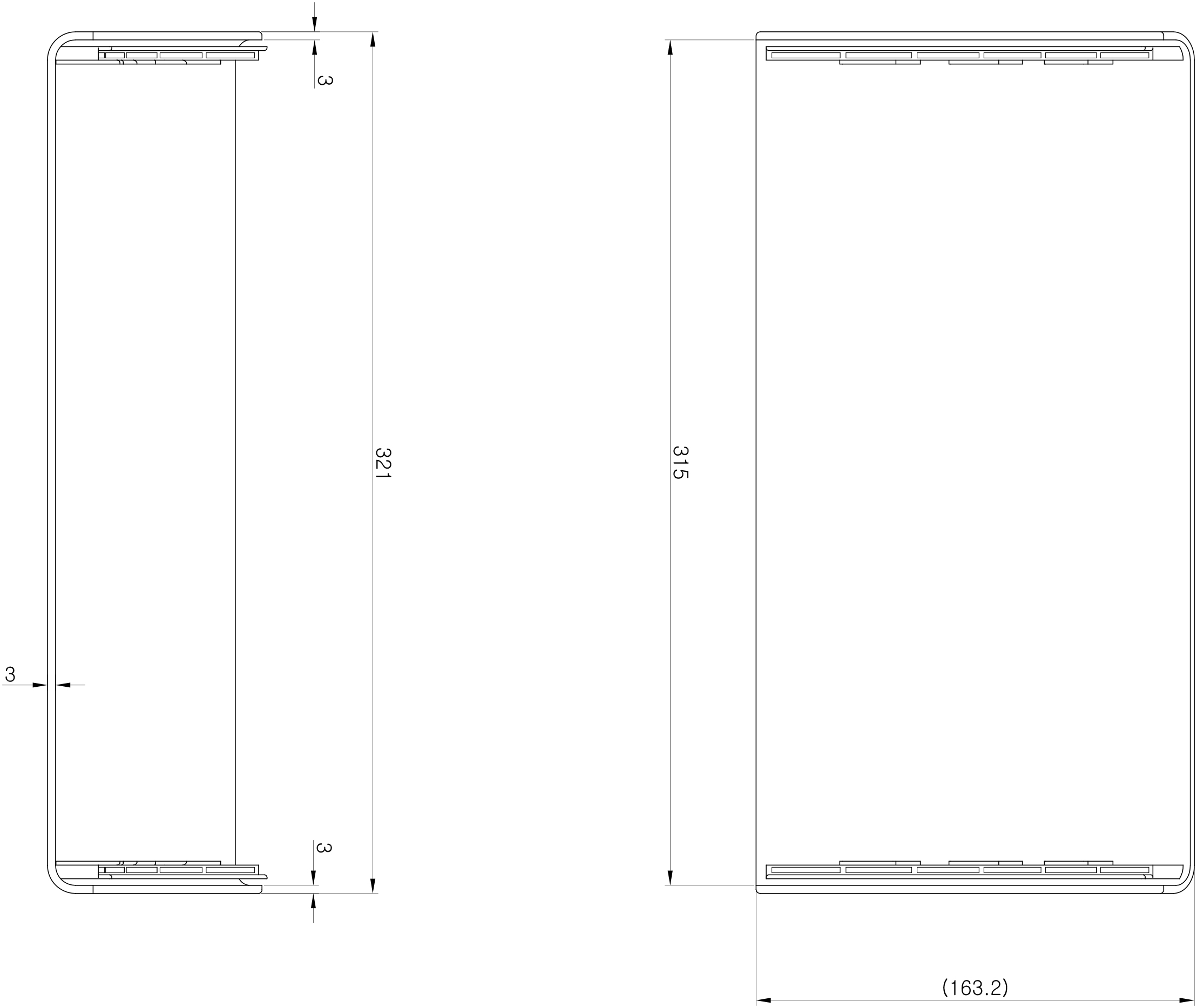

| DW-30DAC |  |
300 V-E 45’ Down Cover 300mm×100mm Length : 177mm |
PC&ABS (Halogen Free) |
|
|
| UP ELBOW |
DW-05UA |  |
50 V-Elbow 45’ Up 50mm×50mm Length : 99mm |
PC&ABS (Halogen Free) |
|
| DW-10UA |  |
100 V-Elbow 45’ Up 100mm×100mm Length : 152.5mm |
PC&ABS (Halogen Free) |
|
|
| DW-16UA |  |
160 V-Elbow 45’ Up 160mm×100mm Length : 152mm |
PC&ABS (Halogen Free) |
|
|
| DW-22UA |  |
220 V-Elbow 45’ Up 220mm×100mm Length : 156mm |
PC&ABS (Halogen Free) |
|
|
| DW-30UA |  |
300 V-Elbow 45’ Up 300mm×100mm Length : 156mm |
PC&ABS (Halogen Free) |
|
|

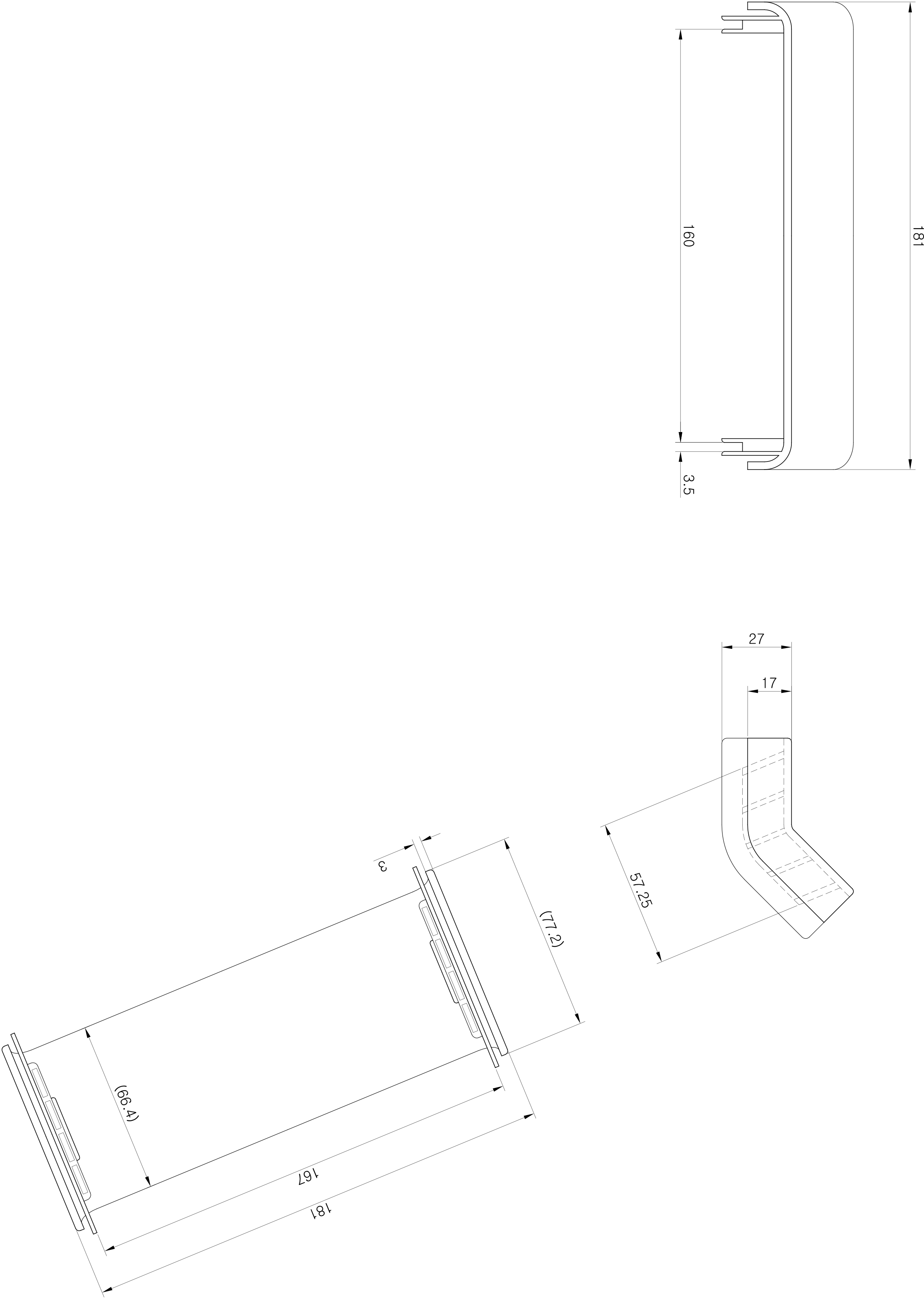

| UP LBOW COVER |
DW-05UAC |  |
50 V-E 45’ Up Cover 50mm×50mm Length : 65mm |
PC&ABS (Halogen Free) |
|
| DW-10UAC |  |
100 V-E 45’ Up Cover 100mm×100mm Length : 87.5mm |
PC&ABS (Halogen Free) |
|
|
| DW-16UAC |  |
160 V-E 45’ Up Cover 160mm×100mm Length : 83.5mm |
PC&ABS (Halogen Free) |
|
|

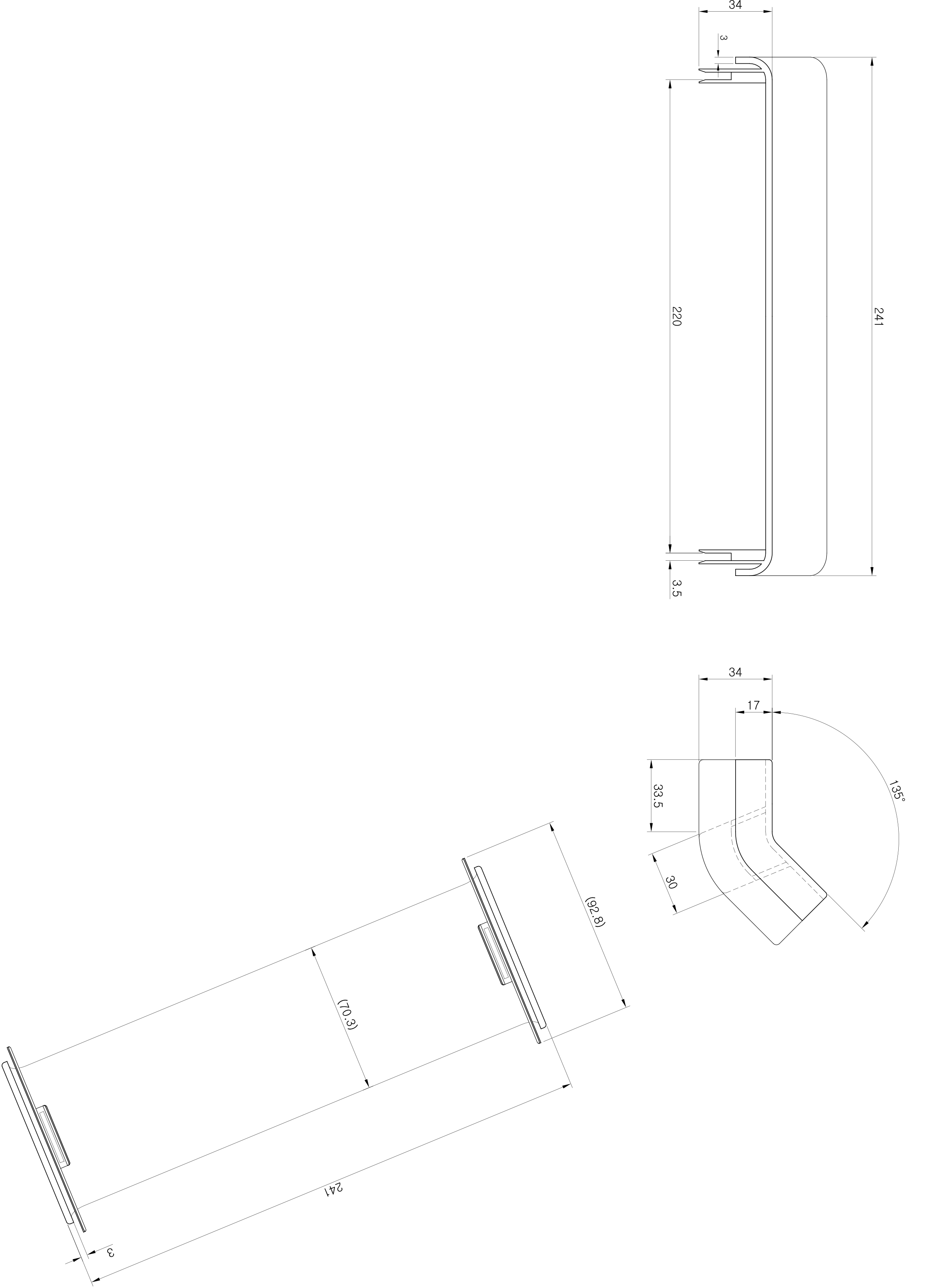

| DW-22UAC |  |
220 V-E 45’ Up Cover 220mm×100mm Length : 92.5mm |
PC&ABS (Halogen Free) |
|
|

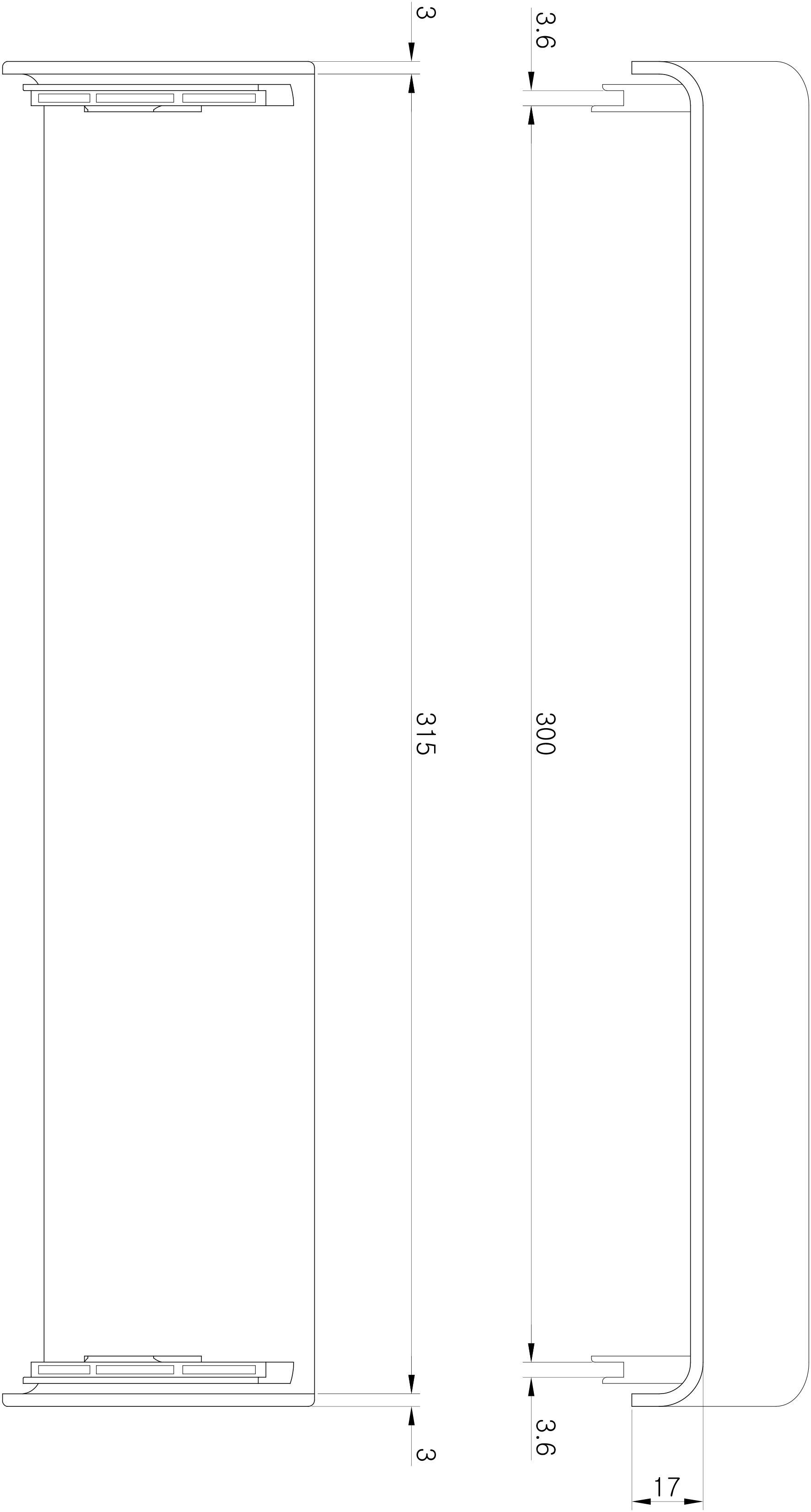

| DW-30UAC |  |
300 V-E 45’ Up Cover 300mm×100mm Length : 80.5mm |
PC&ABS (Halogen Free) |
|
|

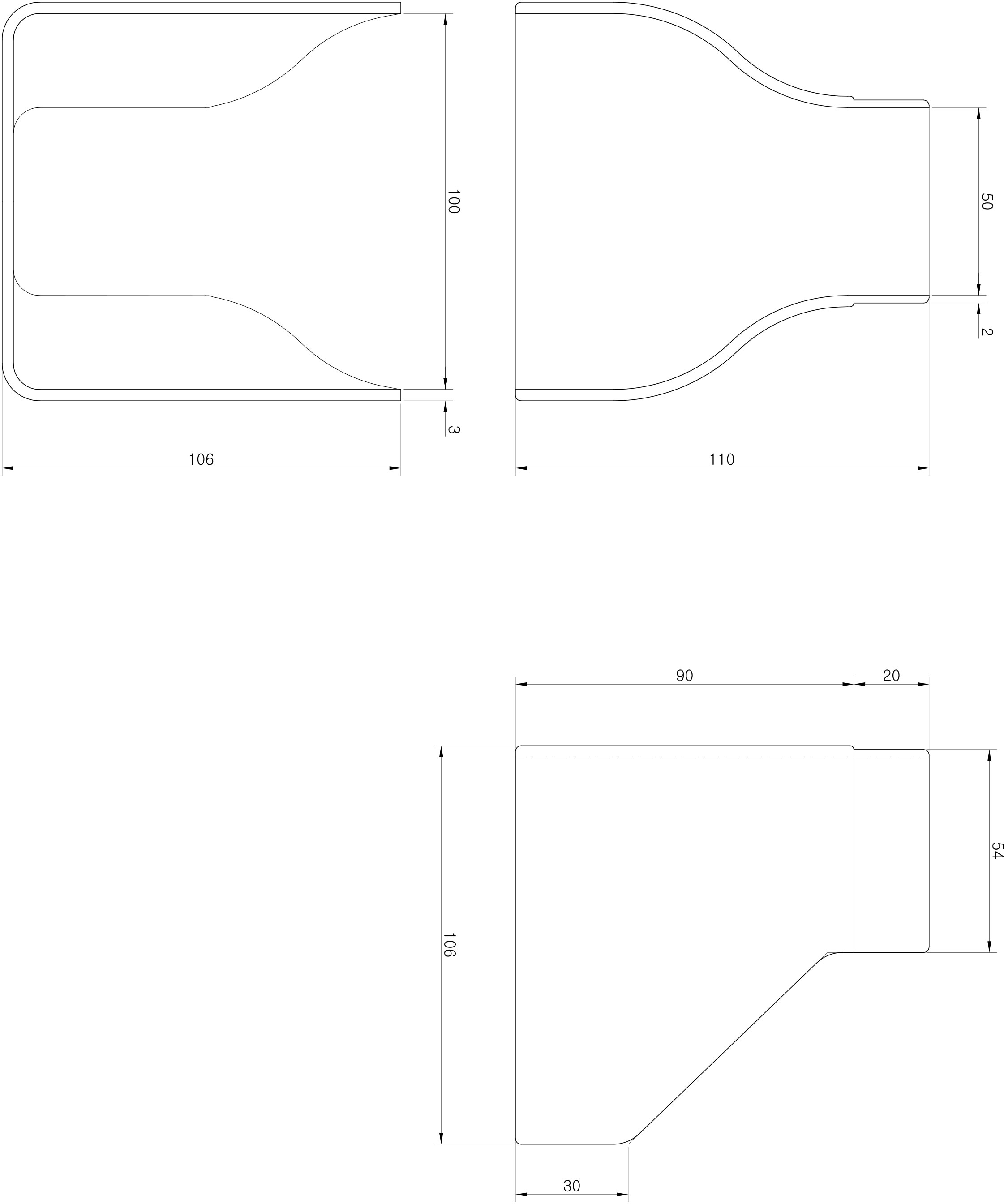

| REDUCERS | DW-10RD |  |
100~50 Reducers 100mm×100mm → 50mm×50mm Length : 110mm |
PC&ABS (Halogen Free) |
|
| DW-16RD |  |
160~100 Reducers 160mm×100mm → 10mm×100mm Length : 125mm |
PC&ABS (Halogen Free) |
|
|
| DW-22RD |  |
220~160 Reducers 220mm×100mm → 160mm×100mm Length : 140mm |
PC&ABS (Halogen Free) |
|
|
| DW-30RD |  |
300~220 Reducers 300mm×100mm → 220mm×100mm Length : 150mm |
PC&ABS (Halogen Free) |
|
|

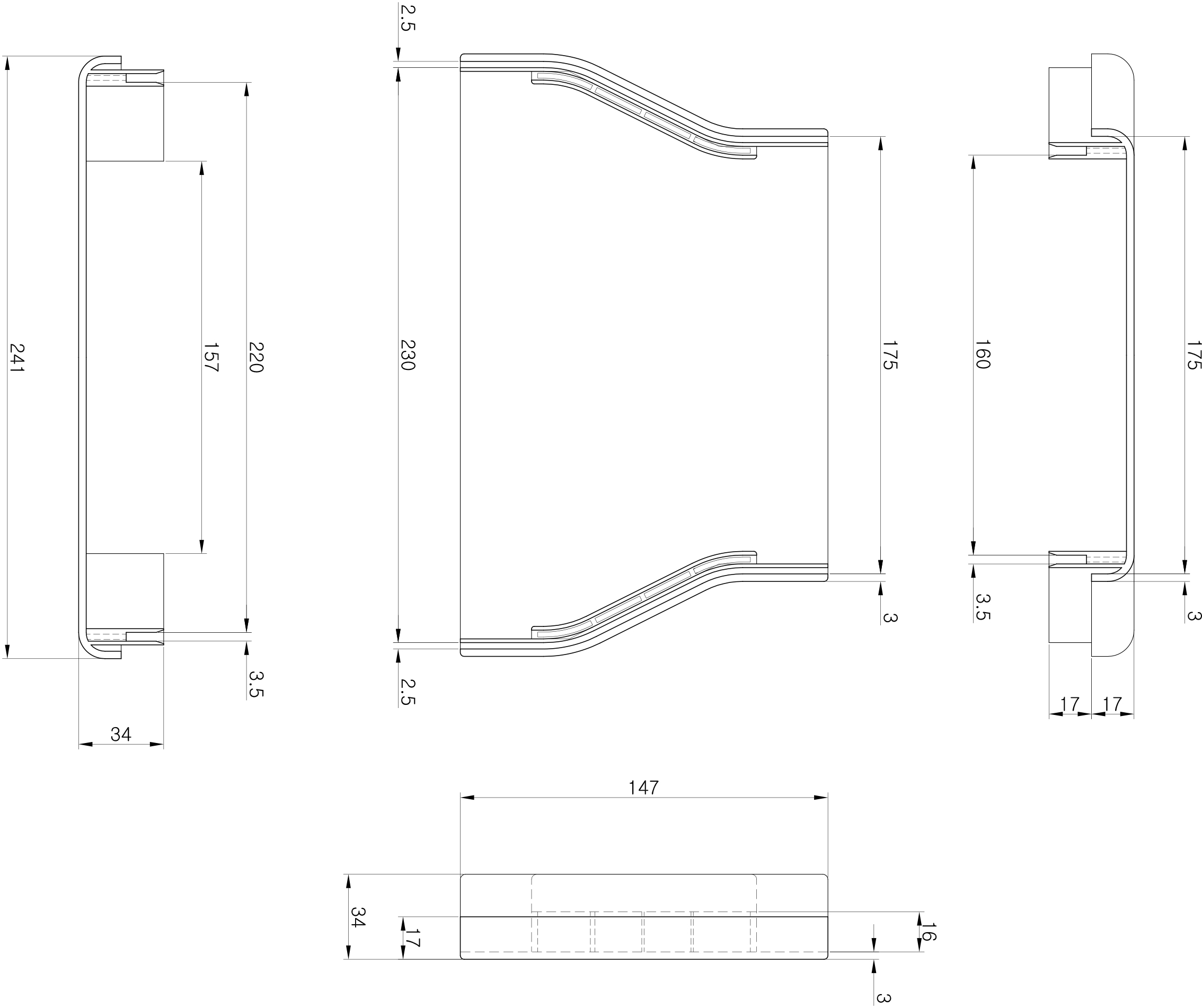

| REDUCERS COVER |
DW-10RDC |  |
100~50 Reducers Cover 100mm×100mm → 50mm×50mm Length : 114.5mm |
PC&ABS (Halogen Free) |
|
| DW-16RDC |  |
160~100 Reducers Cover 160mm×100mm → 10mm×100mm Length : 131mm |
PC&ABS (Halogen Free) |
|
|
| DW-22RDC |  |
220~160 Reducers Cover 220mm×100mm → 160mm×100mm Length : 147mm |
PC&ABS (Halogen Free) |
|
|
| DW-30RDC |  |
300~220 Reducers Cover 300mm×100mm → 220mm×100mm Length : 156.5mm |
PC&ABS (Halogen Free) |
|
|
| TRUMPET | DW-05TPC |  |
50 Outlet Trumpet 50mm×50mm Length : 45.5mm |
PC&ABS (Halogen Free) |
|

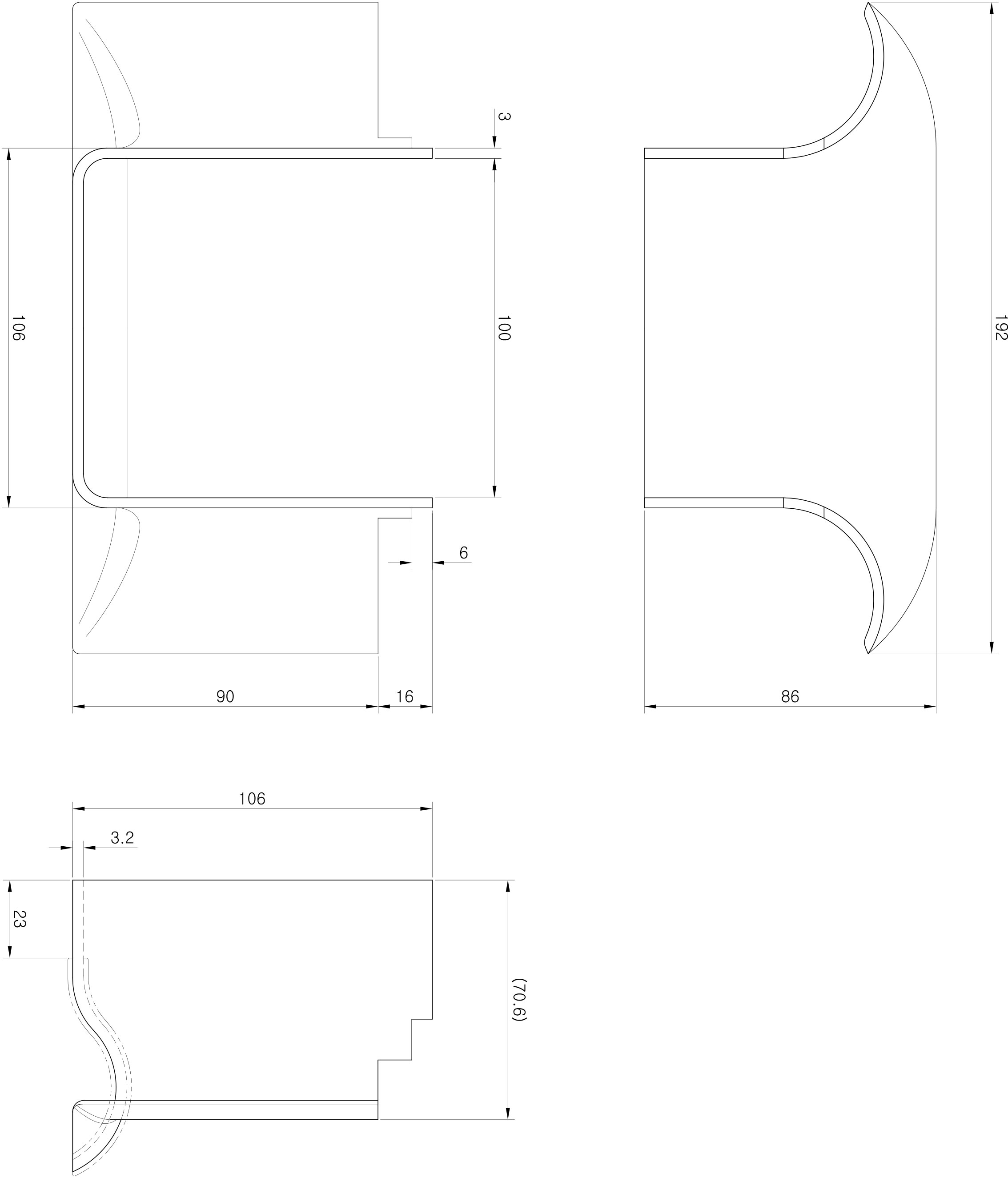

| DW-10TP |  |
100 Outlet Trumpet 100mm×100mm Length : 86mm |
PC&ABS (Halogen Free) |
|
|

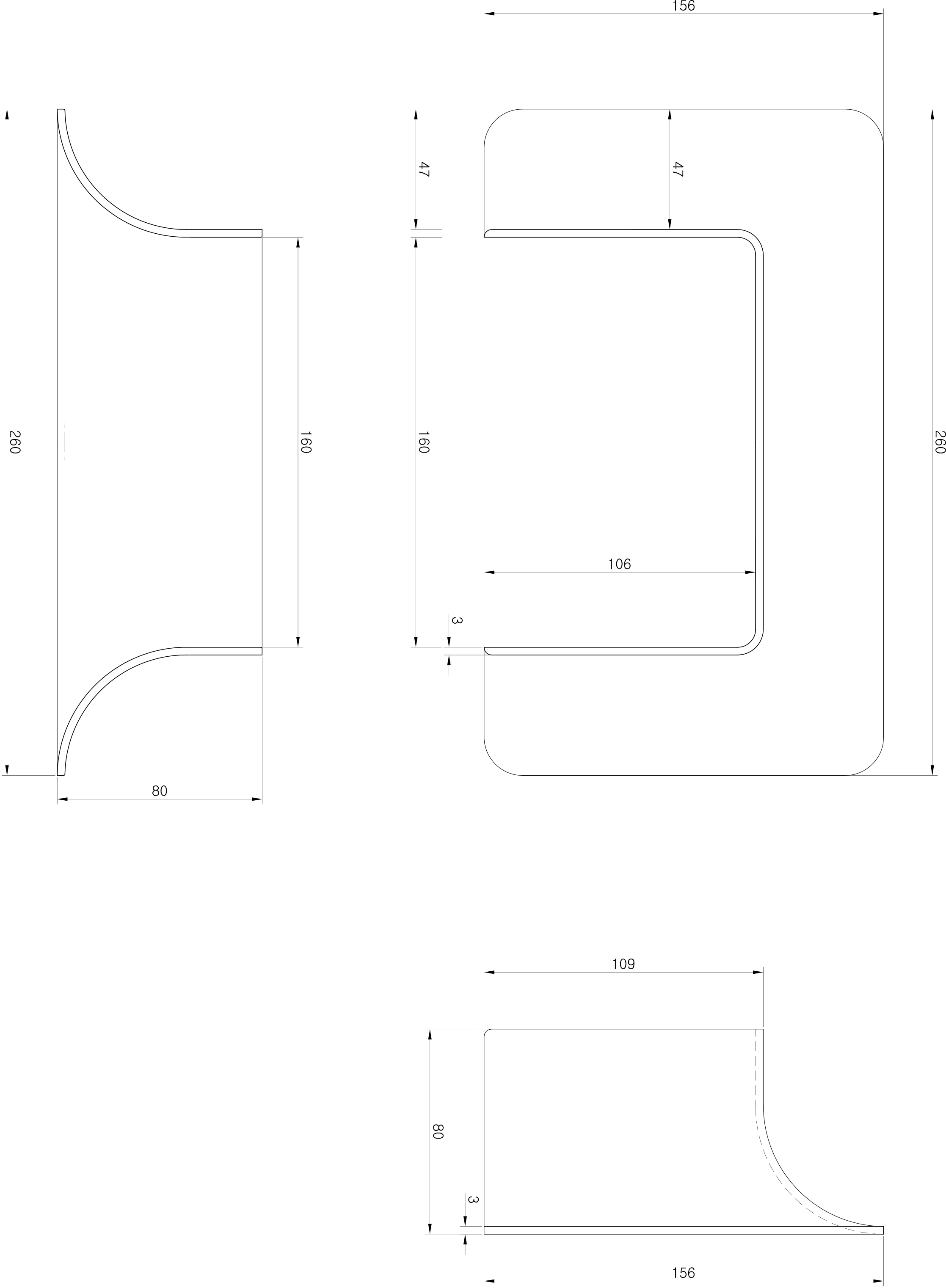

| TRUMPET | DW-16TP |  |
160 Outlet Trumpet 160mm×100mm Length : 80mm |
PC&ABS (Halogen Free) |
|
| DW-22TP |  |
220 Outlet Trumpet 220mm×100mm Length : 80mm |
PC&ABS (Halogen Free) |
|
|

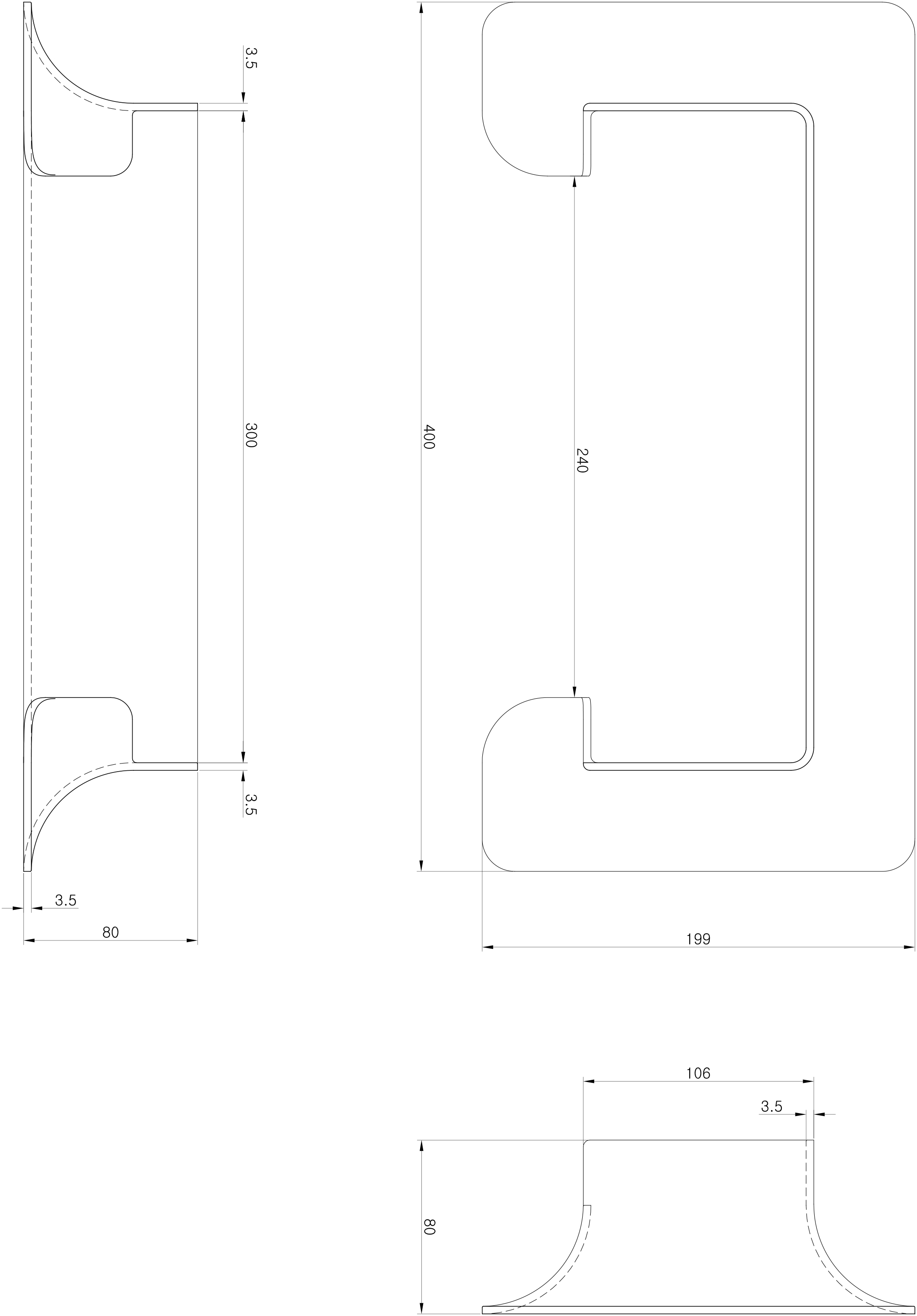

| DW-30TP |  |
300 Outlet Trumpet 300mm×100mm Length : 80mm |
PC&ABS (Halogen Free) |
|
|

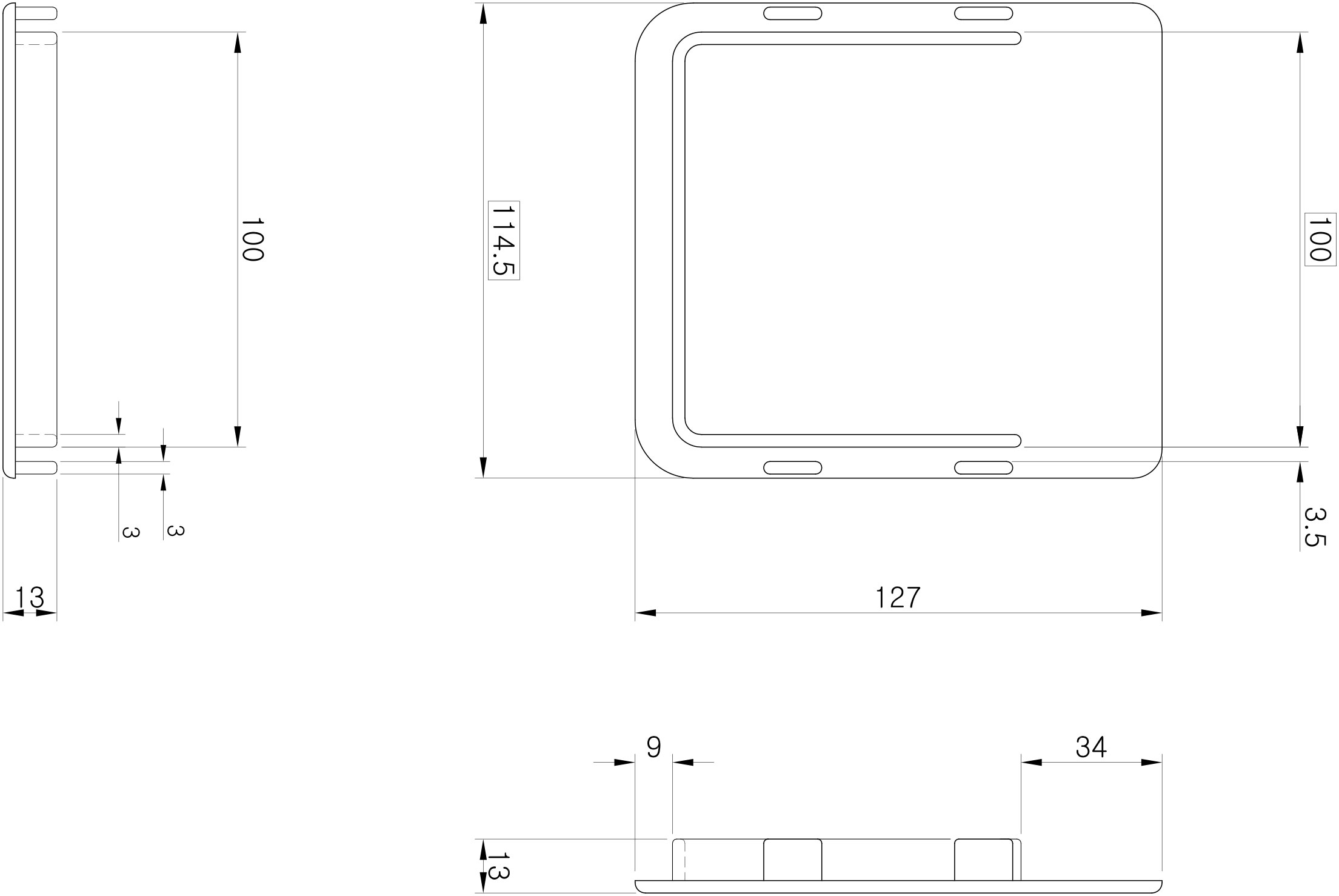

| END CAP |
DW-10EC |  |
100 End Cap 100mm×100mm Length : 13mm |
PC&ABS (Halogen Free) |
|
| DW-16EC |  |
160 End Cap 160mm×100mm Length : 13mm |
PC&ABS (Halogen Free) |
|
|

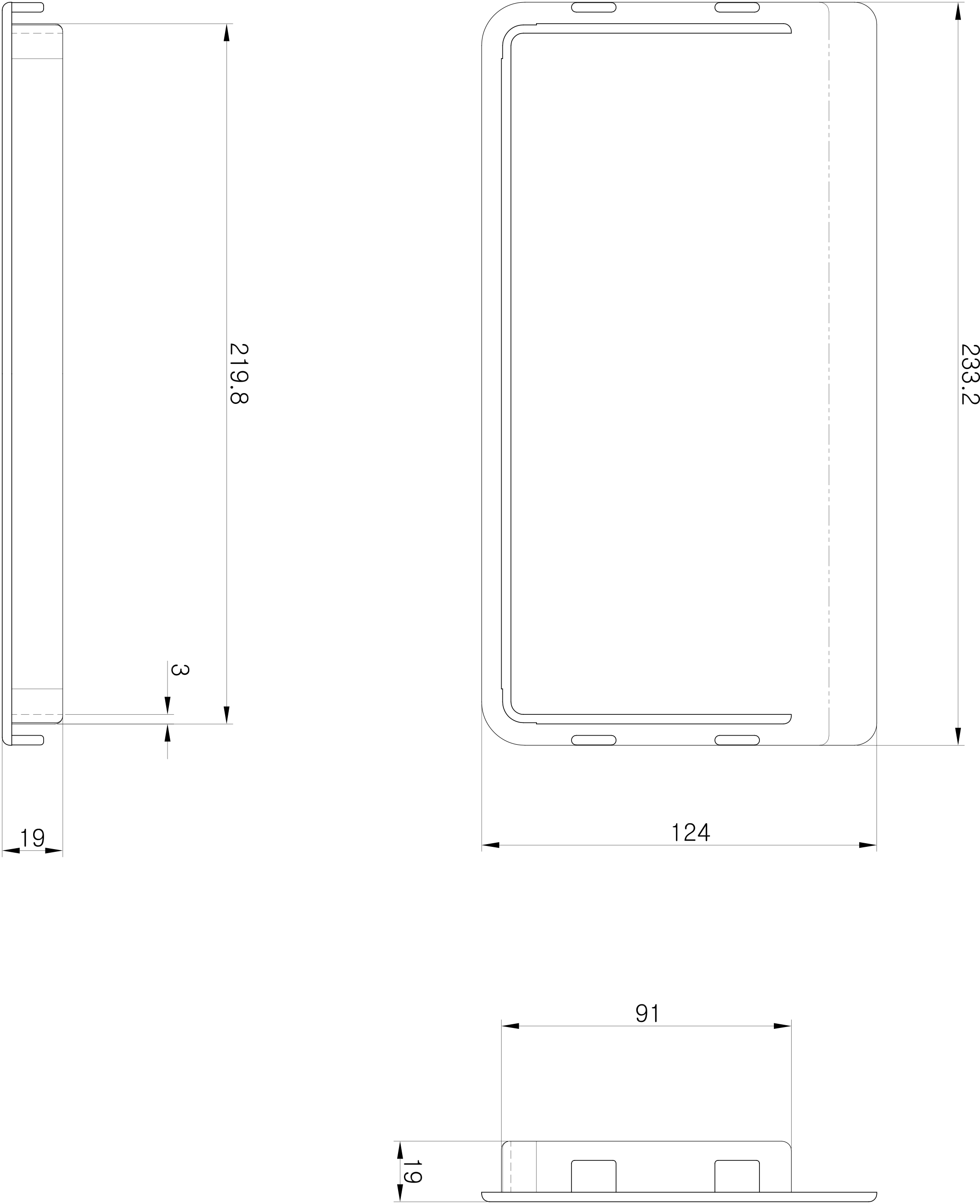

| DW-22EC |  |
220 End Cap 220mm×100mm Length : 19mm |
PC&ABS (Halogen Free) |
|
|

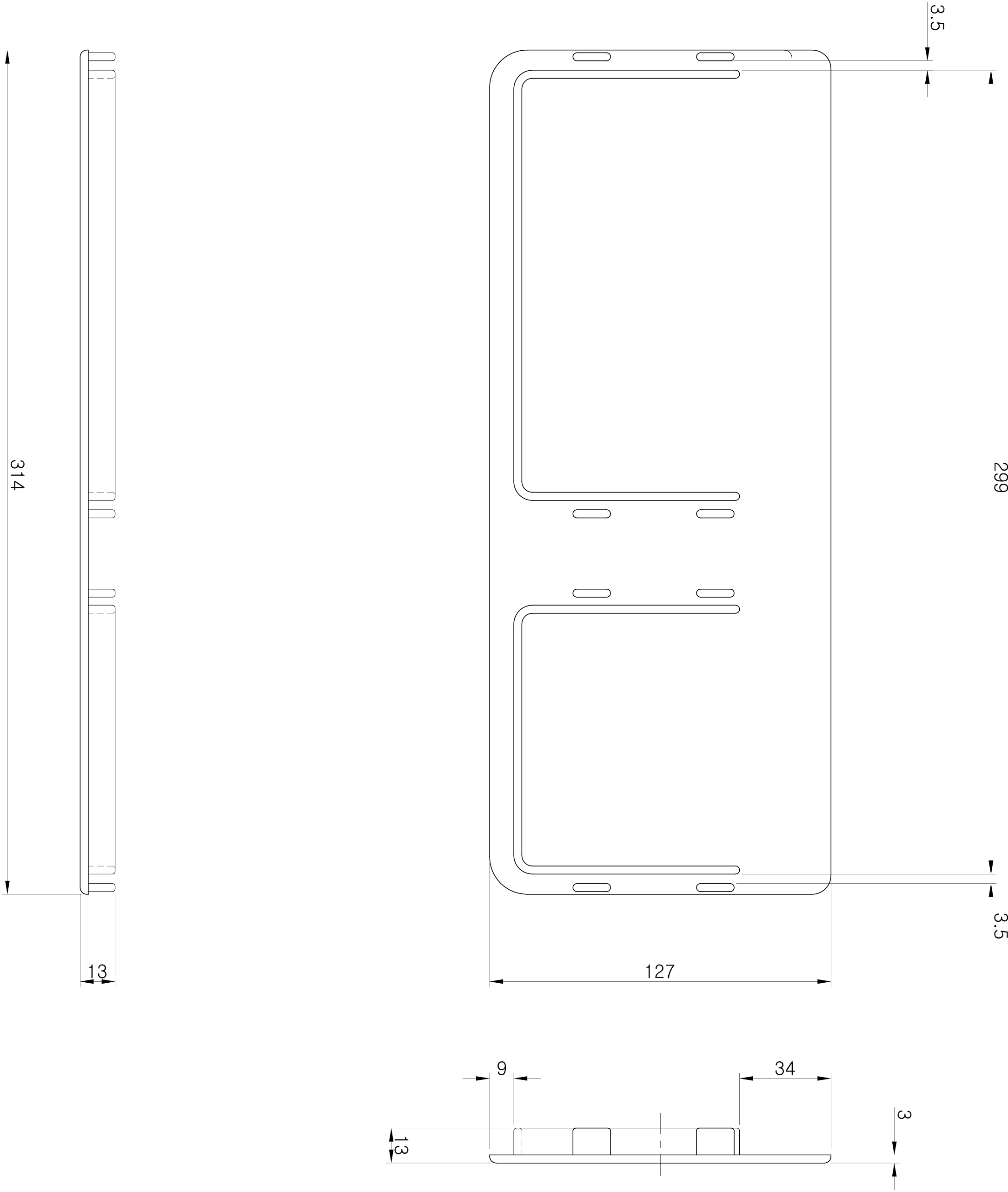

| DW-30EC |  |
300 End Cap 300mm×100mm Length : 13mm |
PC&ABS (Halogen Free) |
|
|
| TOP & COVER |

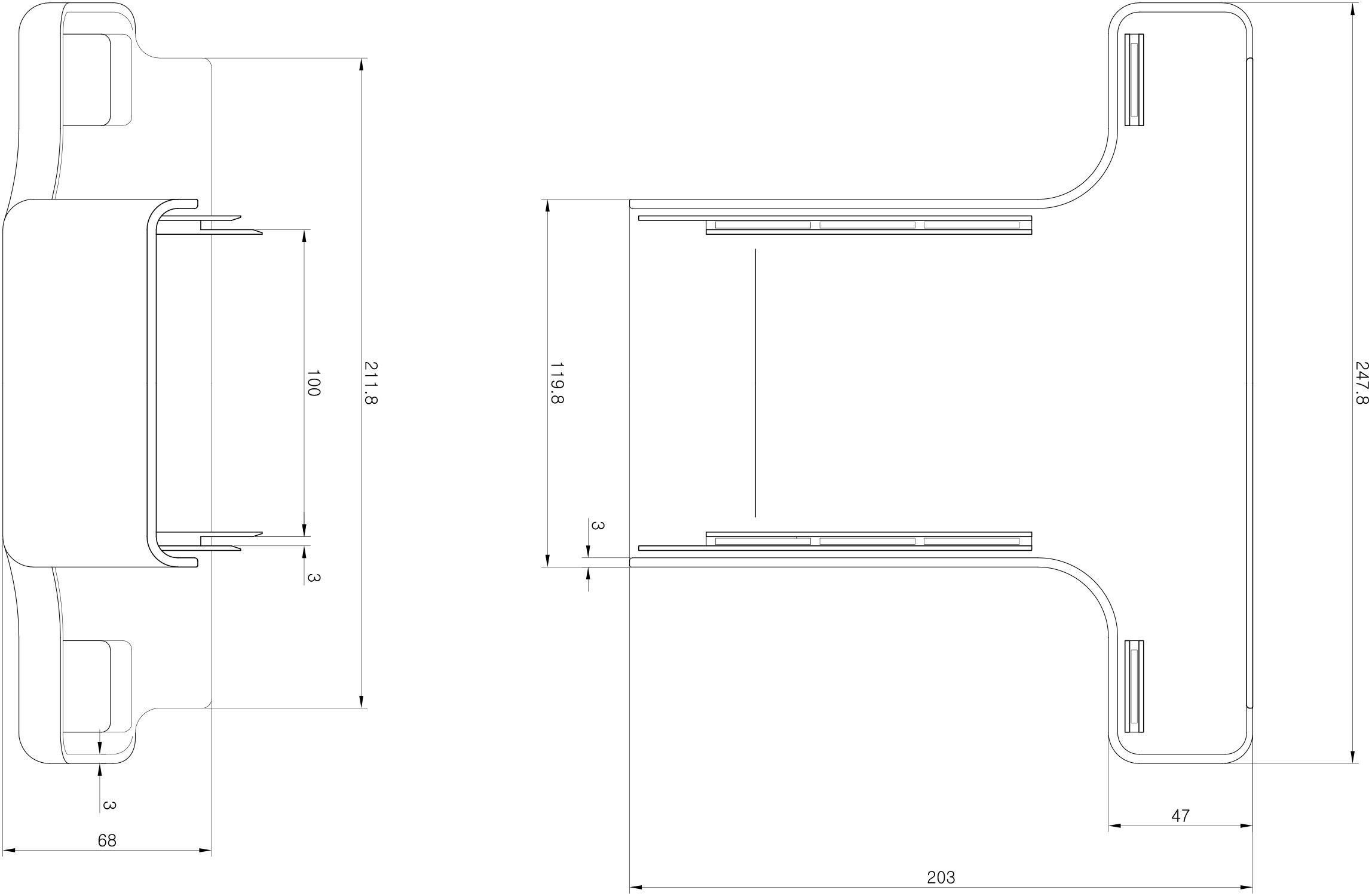

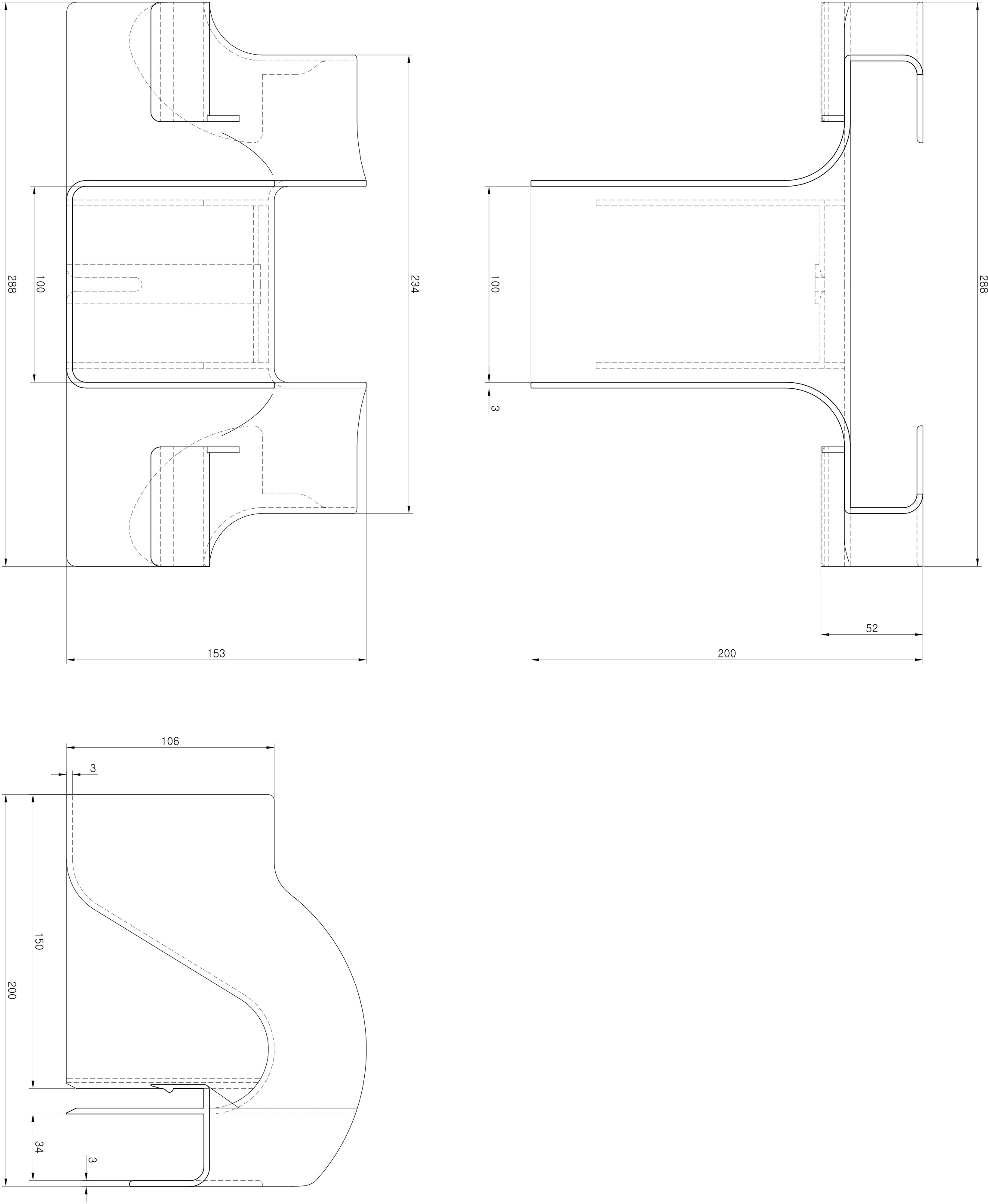

DW-10HT |  |
100 Horizontal Top 100mm×100mm Length : 200mm |
PC&ABS (Halogen Free) |
|
| DW-10HTC |  |
100 Horizontal Top Cover 100mm×100mm Length : 203mm |
PC&ABS (Halogen Free) |
|
|

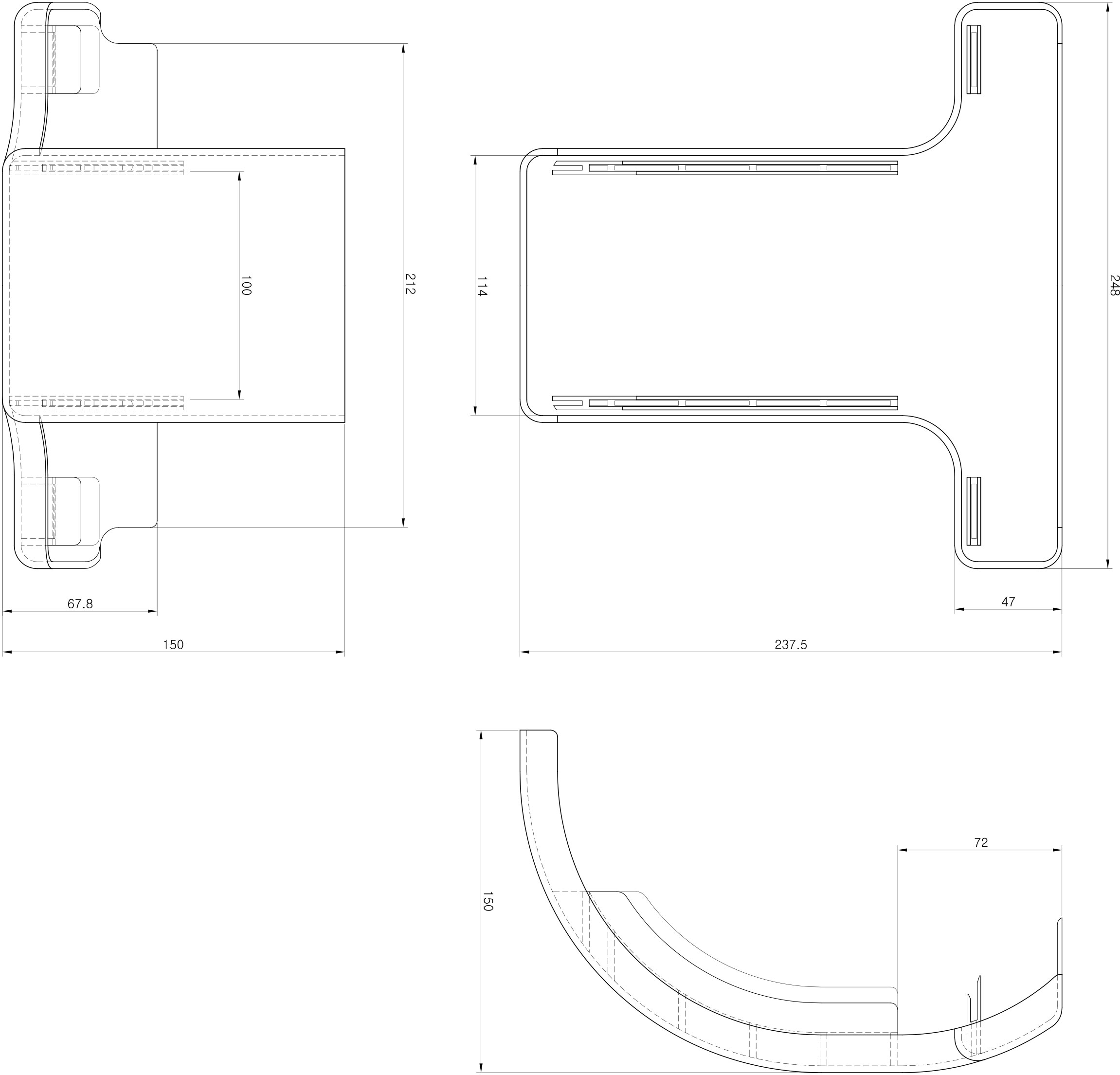

| DW-10VT |  |
100 Vertical Top 100mm×100mm Length : 196mm |
PC&ABS (Halogen Free) |
|
|
| DW-10VTC |  |
100 Vertical Top Coverp 100mm×100mm Length : 215mm |
PC&ABS (Halogen Free) |
|
|

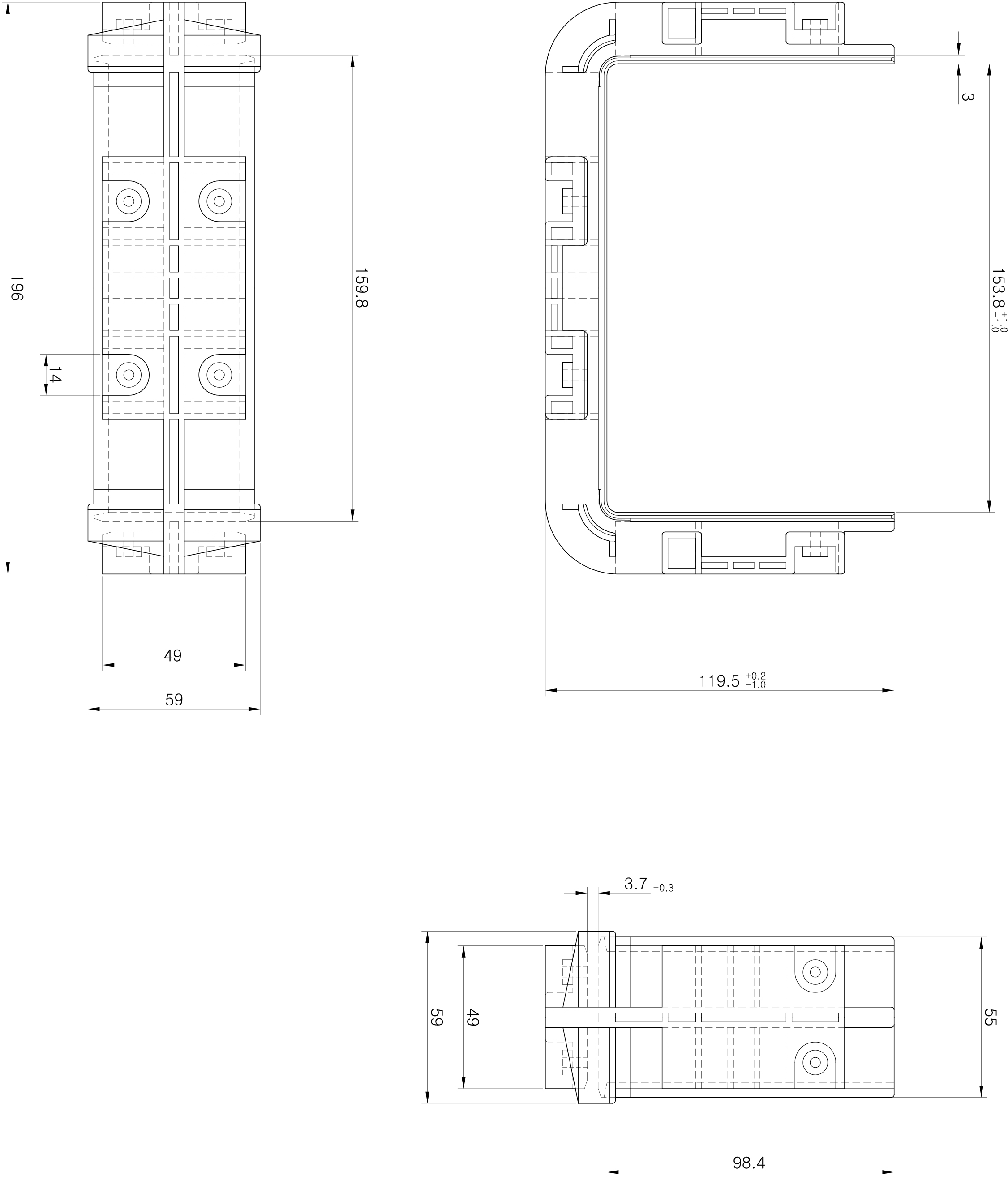

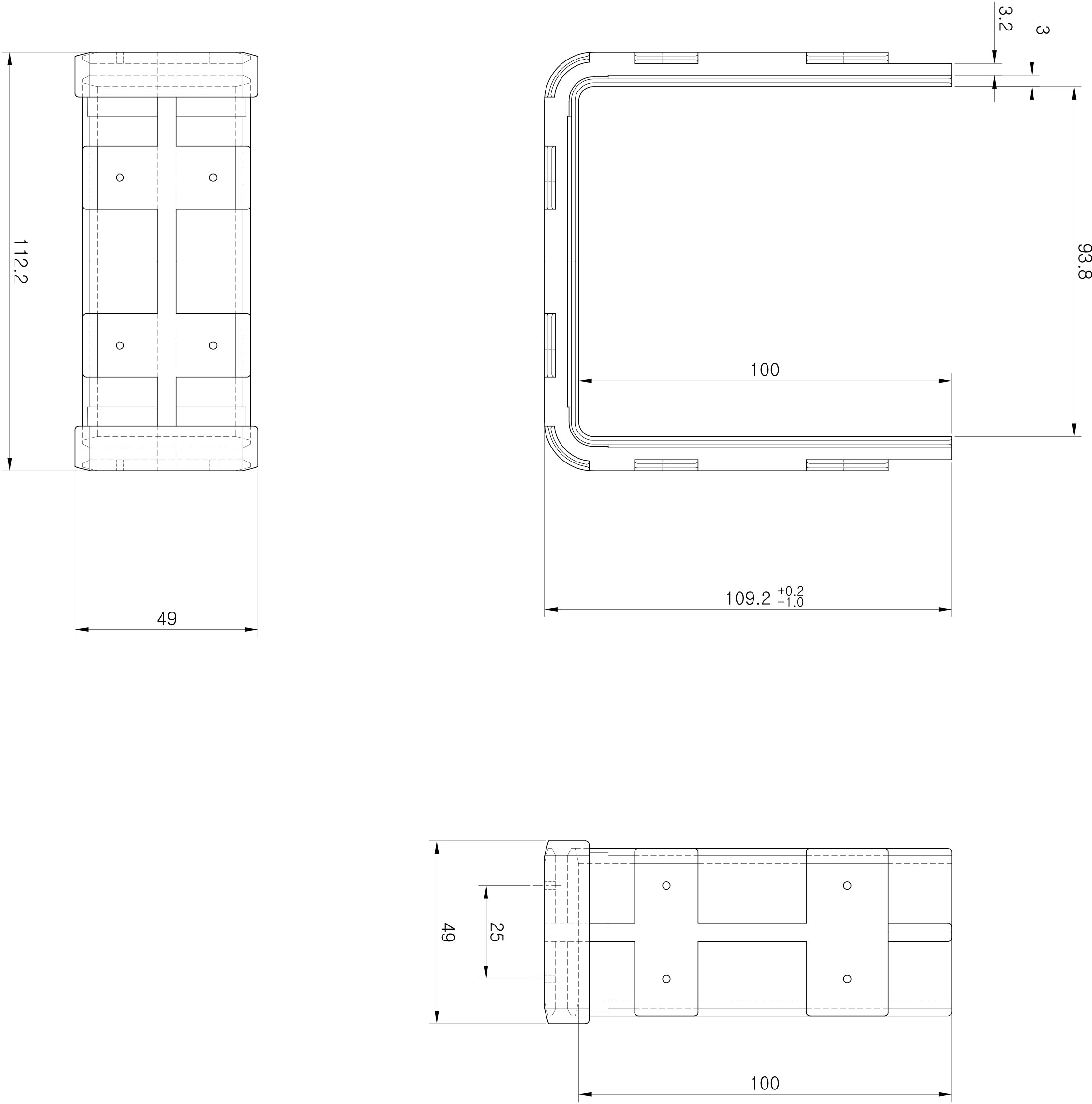

| JOINERS | DW-05JO |  |
50 Joiners 50mm×50mm Length : 34(+4)mm |
PC&ABS (Halogen Free) |
|
| DW-10JO |  |
100 Joiners 100mm×100mm Length : 45(+4)mm |
PC&ABS (Halogen Free) |
|
|
| DW-16JO |  |
160 Joiners 160mm×100mm Length : 55(+4)mm |
PC&ABS (Halogen Free) |
|
|
| DW-22JO |  |
220 Joiners 220mm×100m Length : 55(+4)mm |
PC&ABS (Halogen Free) |
|
|

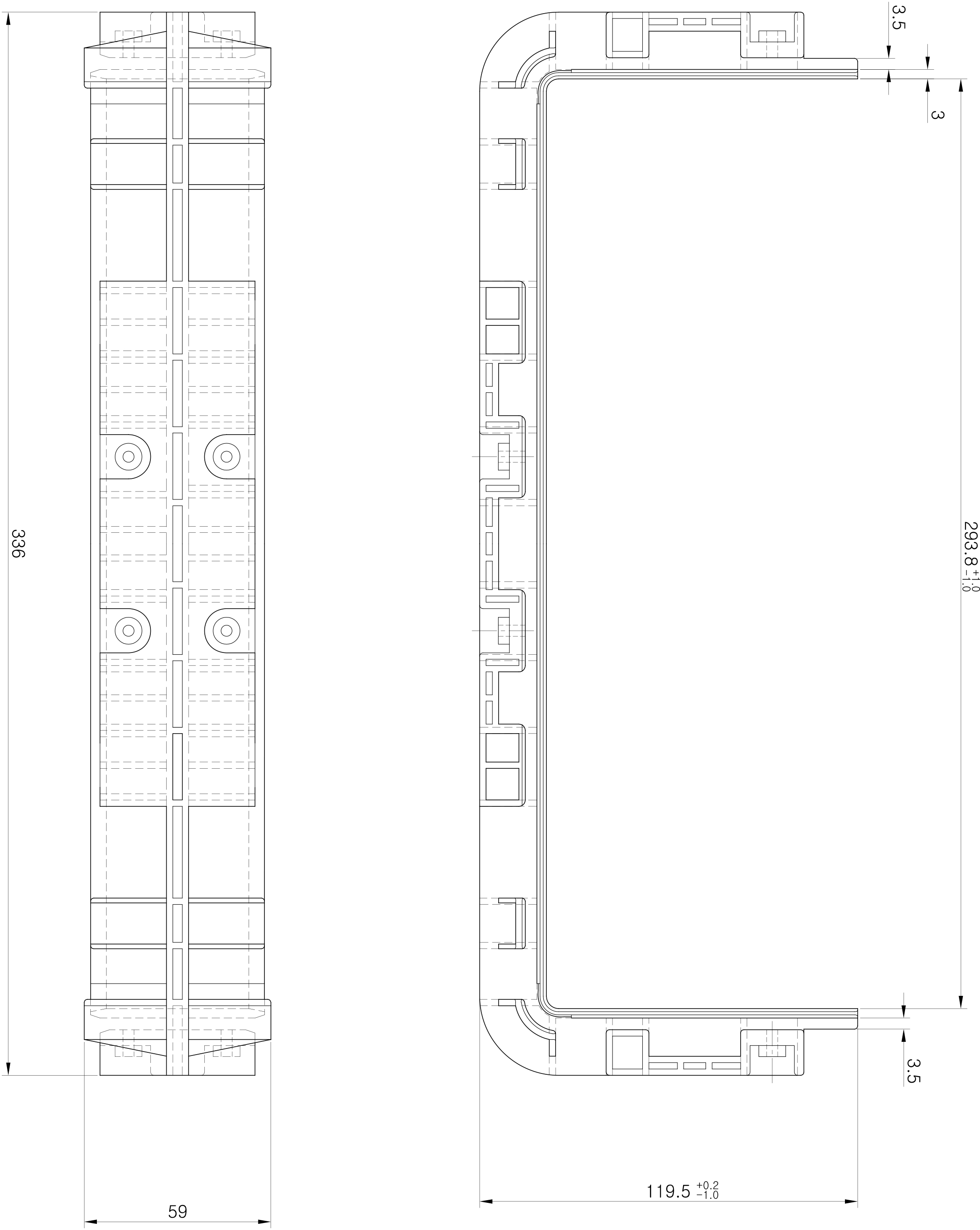

| DW-30JO |  |
300 Joiners 300mm×100mm Length : 55(+4)mm |
PC&ABS (Halogen Free) |
|
|
| EXTRA UNIT |
DW-0305CP |  |
30X50 Cable Protect 23.5 X 23 X 1.2T Length : 10mm |
PC&ABS (Halogen Free) |
|

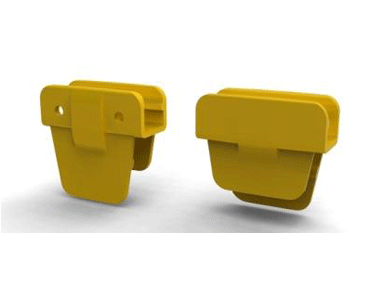

| DW-D’CLIP |  |
all Duct Cover Clip 40 X 38 X 2~2.5T Length : 17.5mm |
PC&ABS (Halogen Free) |
|
|
| DW-APP855 DW-APP857 |
 |
nsulator Ø22 X 51 X 2.5T Ø31 X 8 X 2.5T |
PC&ABS (Halogen Free) PVC |
|
|
| DW-T’BOLT |  |
Tees Bolt & Nut 27.5 X 21 X 3.0T 20 X 8.5 X 2.5T(M6X24)m |
PC&ABS RUBBER SCM440 |
|
|

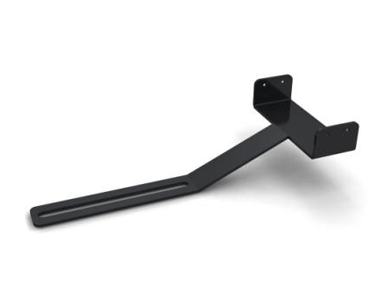

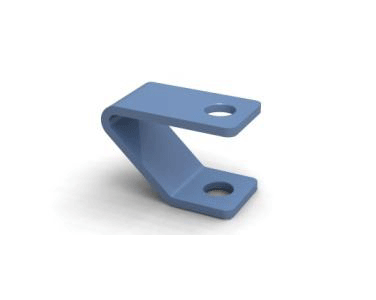

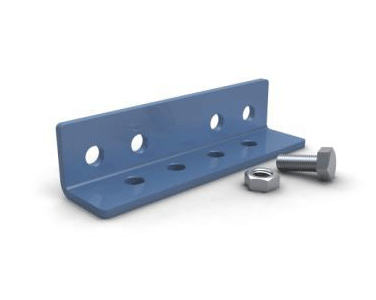

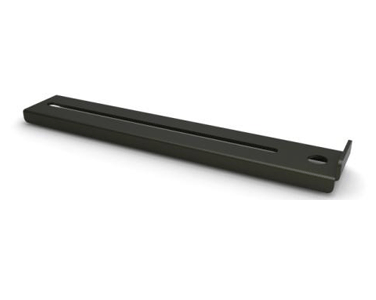

| SOPPORT UNIT |
DW-16SMTB |  |
100 Mounting Bracket 160 Mounting Bracket 228 X 28 X 3.0T Length : 56mm |
SPCC |
|
| DW-22SMTB |  |
220 Mounting Bracket 290 X 28 X 3.0T Length : 56mm |
SPCC |
|
|
| DW-30SMTB |  |
300 Mounting Bracket 333 X 28 X 3.0T Length : 56mm |
SPCC |
|
|
| DW-10 DMTB |  |
Drop Mounting Bracket 124 X 72 X 3.0T Length : 295mm |
SPCC |
|
|
| DW- 4JOLS DW- 3JOSS |
 |
Pan Head Screw(L) M4 X 10(160~300 Joiners) Pan Head Screw(S) M3 X 6(50~100 Joiners) |
SCM440 |
|
|
| DW-APP854 |  |
Structure- Mounting Bracket 112.5 X 63 X 6.0T Length : 50mm |
SPCC |
|
|
| DW-APP856-1 |  |
Structure(S) & (L) 50 X 50 X 6.0T L:3000 / S:1500mm |
SCM440 |
|
|
| DW-APP856-2 |  |
Structure Joiners 40 X 40 X 5.0T Hex Screw(M10X25) Length : 160mm |
SPCC |
|
|

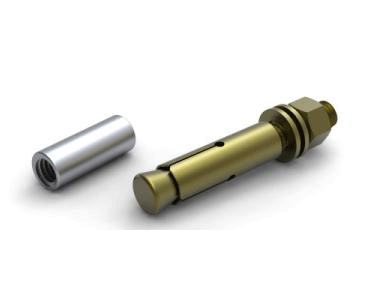

| DW-SP1’KITS |  |
Long Nut(5/8”) Ø21 X 55mm Anchor Set(5/8”) Ø21 X 122mm |
SPCC |
|
|
| DW-SP2’KITS |  |
Threaded Rod(5/8”) 5/8” X 600mm Cap Nut & Washer 5/8” X 25mm |
SPCC |
|
|
